Brand Name : | SILENCE |
Model Number : | PT |
Certification : | ISO Certification |
Price : | USD1000-5000/set |
Payment Terms : | T/T, L/C, Western Union |
Supply Ability : | 10 sets |
Delivery Time : | 10 days |
A3 3.5 Ton Portable Gantry Crane For Warehouse Widely
Product description of Portable Gantry Crane
1. Easy operation and assembly
2. Adjustable height and span can be more suitable for the working
environment
3. Material can be steel or Aluminum
4. Wear-resistant polyurethane wheels; small rolling resistance, easy to move; safe and reliable
Technical parameters of Portable Gantry Crane
Model | Capacity(T) | Lifting Height(M) | Span(M) | Work Duty | Lifting Speed(m/min) | Hoist Traveling |
Speed(m/min) | ||||||
ZT-2 | 2T | 3-10 | 2-10 | A3 | 3.4 | 11 |
ZT-3 | 3T | 3-10 | 2-10 | A3 | 2.2 | 11 |
ZT-5 | 5T | 3-10 | 2-10 | A3 | 2.7 | 11 |
ZT-10 | 10T | 3-10 | 2-10 | A3 | 2.7 | 11 |
ZT-15 | 15T | 3-10 | 2-10 | A3 | 1.8 | 11 |
ZT-20 | 20T | 3-10 | 2-10 | A3 | 1.4 | 11 |
Features of Portable Gantry Crane
The unique portable gantry system can be safely lifted up to 5000kg
with only 4 bolts for manual assembly.
Innovative, light weight, portable, safe and powerful carrying
capacity
Light weight, portable, on-site can be manually installed
- 4 light and small parts can be put together with only 4 bolts
- The legs can be assembled in 2-3 minutes
-360° rotating casters for easy positioning in any position
- Can be used on all flat and uneven ground
- Simple structure, height and span can be adjusted
- It's very safe and the car doesn't fall off
- Foldable for easy storage and transportation
The overall safety performance has passed the CE certification,
according to the EN795 class B standard design
Ergonomically designed profiles, handles, etc., safer operation
Lifting rated load is 500Kg-5000Kg, please refer to the technical
parameter table for details
Various sizes of S/M/I/T standard configuration, also can be
customized, components are interchangeable
If you need non-standard customization, you can contact our
technical staff

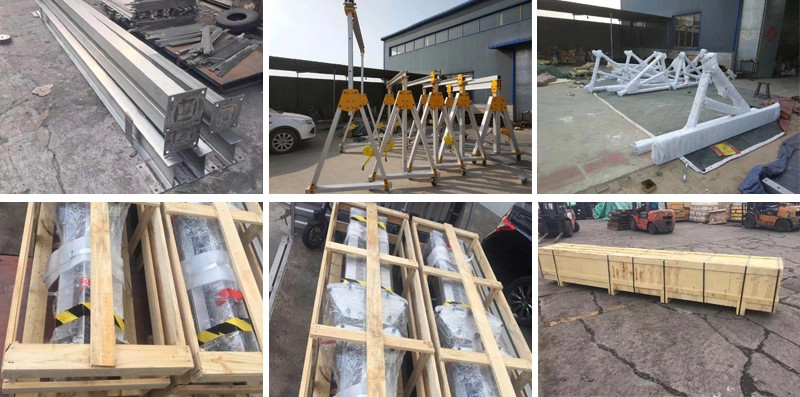

Packing and shipping of Portable Gantry Crane
![]() |
