2 Ton 360 Degree Column Mounted Jib Crane Compact Design
Product presentation
1. Low maintenance and easy replacement, apply to a variety of
working areas.
2. Available customize to meet needs on lifting capacity, rotating
angle, JIB length or function, etc.
3. Shorten time and high efficiency, especially in smaller working
conditions.
4. Accurate location and easy operation.
5. All designs conform to human engineering.
6. All parts are highly cost effective, highly standardized, with
reliable quality and stable performance.
7. High quality and wide adaptation.
Advantages:
BZ type column cantilever crane has the advantages of unique
structure, high safety, high reliability, high work efficiency,
energy saving and time saving, flexible operation and so on.
Compact design:
The compact structure design enables the column boom crane to have
light weight and excellent working performance, improve the space
utilization rate, and minimize the working distance of the hook.
Provide the best material handling solution for your application.
Smooth and fast loading, excellent performance:
A stepless frequency conversion control system is installed on the
crane and the trolley to make the column cantilever crane have
stable braking, accurate positioning, reliable operation, stable
walking and rapid positioning, and solve the problem of load swing.
Safer, more reliable, and free maintenance design:
The best technology is adopted to make frequent operations safe and
efficient. The perfect braking system can greatly improve the
safety and reliability of the column boom crane, equipped with
dust-proof design, and the service life can be up to 1 million
times.
The tooth surface is hardened and polished to ensure smooth and
trouble-free operation of the crane.
Cantilever crane composition:
The cantilever crane is mainly composed of mechanical, electrical
and metal structures.
1.1 Mechanical part
It is composed of main lifting mechanism, sub-lifting mechanism
(above 15T), small car running mechanism and big car running
mechanism.
Includes: motor, coupling, transmission shaft, brake, reducer, drum
and wheel, etc.
1.2 Metal structure
It is mainly composed of bridge frame (main beam, end beam,
railing, beginning, small array track), driver's cab and trolley
frame.
1.3 Electrical part
Electrical equipment and electrical wiring, including bridge Diao
power plant and institutions starting, speed control, reversing,
brake and stop the control system.
Technical parameters
| BZD Type | BZD0.25T | BZD0.5T | BZD1T | BZD2T | BZD3T | BZD5T |
| Lifting Capacity (T) | 0.25 | 0.5 | 1 | 2 | 3 | 5 |
| Maximum radius of rotation Rmax(mm) | 4500 | 4500 | 4500 | 4000 | 4000 | 4000 |
| Minimum radius of rotation R/min(mm) | 800 (manual operation)
1050 (motor-driven) | 900 (manual operation)
1200(motor-driven) | 1140 (manual operation)
1350(motor-driven) | 1380(motor-driven) | 1400(motor-driven) |
|
| Lifting height h(mm) | Generally 3000 |
| Total height H(mm) | 4180 | 4200 | 4280 | 4700 | 4950 | 5150 |
| Arm Length L(mm) | 4950 | 4950 | 5000 | 4570 | 4600 | 4650 |
| Lifting speed(m/min) | 7.1 | 6.8/2.3 | 6.9/2.3 | 6.8/2.3 | 8/0.8 | 8/0.8 |
| Horizontal speed (m/min) | General speed 20/low speed1~10 variable frequency |
| Rotation angle | 180°,270°,360° |
| Voltage | 220~460V 50/60HZ 3PH |
Application:
Modern industry Production line, Assembly line of machining,
Automobile industry, shipbuilding and Material lifting and
warehouse, wharf, Laboratory.
It`s an optimal lifting equipment for enterprise to improve work
efficiency and working conditions.
1. The capacity: _____ton.
2. The lifting height: ____m.
3. The arm length: ___m.
4. The power supply: ____P____V____Hz.
5. The working condition?
6. The crane, informs the for?
Use and maintenance:
1. Operators shall strictly abide by the crane operation rules, and
overload use is not allowed.
2. Terminal baffles are not allowed as a common method of parking.
3. The chain or steel rope binding the heavy objects must have
sufficient strength and be tied firmly and reliably. The rope or
chain should be padded around the sharp Angle of the heavy objects.
4. The lifting and moving of heavy objects should be carried out in
a vertical way. Electric hoist is prohibited to drag or forcibly
lift heavy objects buried in the ground.
5. Lifting heavy objects is strictly prohibited above people,
pedestrians are strictly prohibited below.
6. Heavy objects should not be suspended in the air after work or
during rest.
7. Every six months, accumulations on the lower wing surface of the
beam (at the walking track), rack objects and rack paint shall be
rebrushed or rebrushed according to the peeling situation of the
rotating parts.

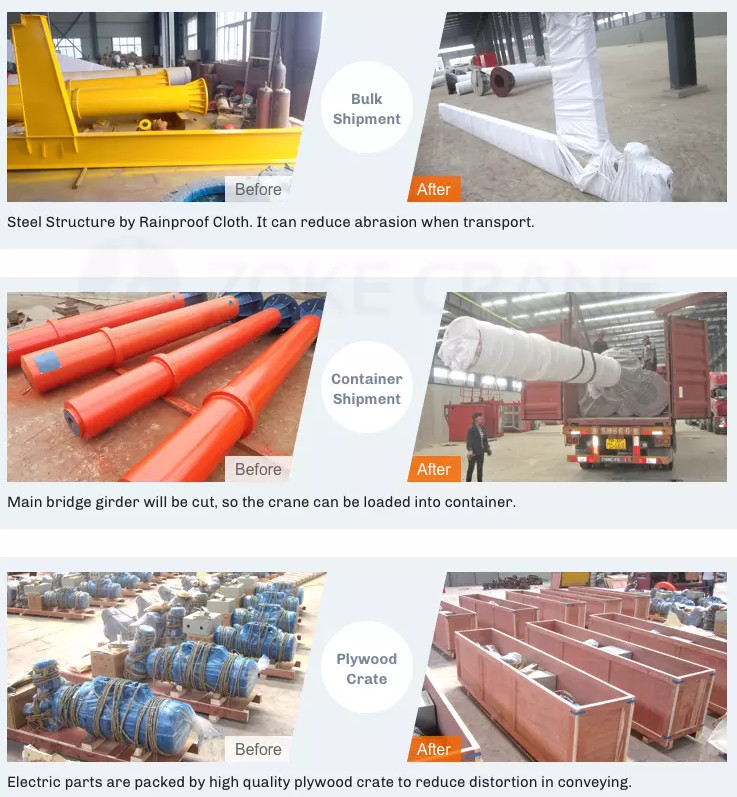

Packaging and shipping
