LDY model metallurgy workshop used single girder overhead crane
with remote control

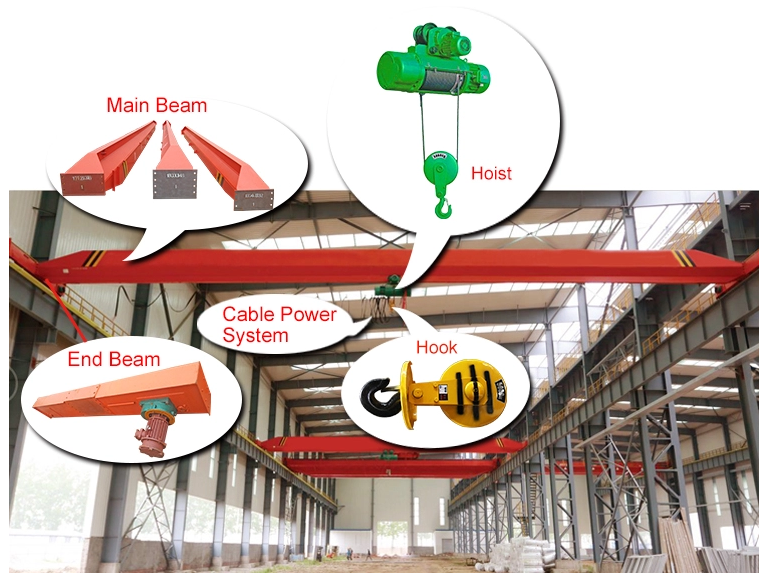

Single girder overhead crane systems has the advantages of rational structure and
strong rigidness of whole unit which will be used together with
electric hoist in the operation.
They are applicable to the transfer assembly, check and repair as
well as load and unload at mechanic processing workshop, subsidiary
workshop of metallurgical mills, warehouse, goods yard and power
station. They can also be used instead of common double-girder
overhead crane at production workshop in light textiles or food industry. It's prohibited to work in environment with combustible,
explosive or corrosive media.
Loading capacity: 1-30t
Span:7.5m-31.5m
Working grade is A3-A5
Single girder overhead crane systems is prohibited to use the equipment in the
combustible, explosives environment
Technical parameter of single girder overhead crane
| Loading capacity | 0.5 ~ 32t |
| Lifting height | 3 ~ 30 m or customized |
| Lifting speed | Vary with lifting capacity, or customized. |
| Span | 7.5~31.5 m |
| Lifting mechanism | Wire rope hoist or electric chain hoist |
| Working class | A3 ~ A5 |
| Working temperature | -20 ~ 40 ℃ |
| Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz |
| Control voltage | DC -36 / 48V |
| Motor protection class | IP54 |
| Control way | Cabin, wireless remote, pendant push button. |
| Safety device | Buffer,current overload protection,overload device,power failure
protection |
| Application area | Factory,workshop,warehouse,power station,logstic,etc. |
| Painting color | Yellow,Red or Customzied |
Advantage of single girder overehad crane
1. Overload protection: If the material is over the capacity, the
crane will give a sharp warning for protection itself
2. Emergency brake: If the operation staff encounter some emergency
situation, we could start the emergency brake system to protection
the related treasure.
3. Control Method: Room control or remote control to avoid any
injure to the operation staff
4. Main lifting motor: with thermal protection and currency
protection.
5. Hooks with latch
6. Rubber buffers
7. Protective earthing
8. Crane switch and travel end switch
9. Sub-assemblies characteristic are tested before assemly.
10. All cranes must be pre-assmebled and tested before leaving
factory and offer the certification of test.
Q&A
1. What's information should I provide to get the price?
More parameters, such as lifting capacity, lifting height, span,
power supply, etc. And if you can give us your design drawing, that
will be very helpful.
2. Which kind crane can you provide?
Weihua is a famous leading manufacturer with experienced designers,
engineers and a 600- people R&D team to provide all kinds crane
with customized parameters.
3. What services can you provide?
We have a complete pre-sales&after-sales service system, and
our engineers are available overseas. And we also provide training
for your crane operators.
4. Which brand are the accessories and electronic components in
your cranes?
We have a long term cooperations with ABB, Siemens, Schneider, ,
etc. And we have world-leading processing machines which are
imported from Japan and German.
5. Do you provide crane spare parts?
Yes, of course, we can provide motors, reducers, brakes, hooks,
remote controllers, wheels, crane rails, end carriages, enclosed
busbar and so on.
