5ton Single girder overhead crane lifting equipment for
manufacturing plant
LD Single Girder Overhead Crane is widely used in plants
warehouses, material stocks to lift goods. It is prohibited to use
the equipment in the combustible, explosive or corrosives
environment.
LD Single Girder Overhead Crane has two operational methods, ground
or operational room which has open model and closed model and can
be installed on left or right side according to the practical
situation. And the direction of entering the gate has two forms,
sideway and ends in order to satisfy the users' Choice users'
different conditions.
Technical parameter of single girder overhead crane
| Loading capacity | 0.5 ~ 32t |
| Lifting height | 3 ~ 30 m or customized |
| Lifting speed | Vary with lifting capacity, or customized. |
| Span | 7.5~31.5 m |
| Lifting mechanism | Wire rope hoist or electric chain hoist |
| Working class | A3 ~ A5 |
| Working temperature | -20 ~ 40 ℃ |
| Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz |
| Control voltage | DC -36 / 48V |
| Motor protection class | IP54 |
| Control way | Cabin, wireless remote, pendant push button. |
| Safety device | Buffer,current overload protection,overload device,power failure
protection |

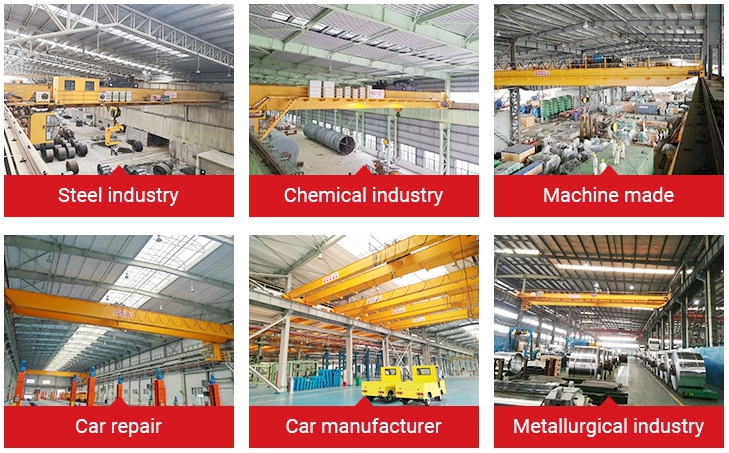

| Application area | Factory,workshop,warehouse,power station,logstic,etc. |
| Painting color | Yellow,Red or Customzied |
Feature of single girder overehad crane
1. Computer-designed box beam, the whole length of the web plate is
cut by NC with accurate deflection;
2. Low clearance trolley structure with reasonable sized hook, thus
it has wide application scope;
3. Arc or flat wheels, anti - friction bearings, honeycomb bumper,
anti - derailment device;
Electrical part of single girder overhead crane
1. Slip-line power supply;
2. Phase protection, disconnected main power in case of incorrect
phase;
3. Independent crane and hoist travelling, also both running at the
same time;
Security of single girder overhead crane
1. Reducer anti-fall, anti-lock;
2. Outdoor hoist with a rain cover;
3. Alarm indicator;
4. Infrared anti-collision.
Q&A
1. What's information should I provide to get the price?
More parameters, such as lifting capacity, lifting height, span,
power supply, etc. And if you can give us your design drawing, that
will be very helpful.
2. Which kind crane can you provide?
Weihua is a famous leading manufacturer with experienced designers,
engineers and a 600- people R&D team to provide all kinds crane
with customized parameters.
3. What services can you provide?
We have a complete pre-sales&after-sales service system, and
our engineers are available overseas. And we also provide training
for your crane operators.
4. Which brand are the accessories and electronic components in
your cranes?
We have a long term cooperations with ABB, Siemens, Schneider, ,
etc. And we have world-leading processing machines which are
imported from Japan and German.
5. Do you provide crane spare parts?
Yes, of course, we can provide motors, reducers, brakes, hooks,
remote controllers, wheels, crane rails, end carriages, enclosed
busbar and so on.
