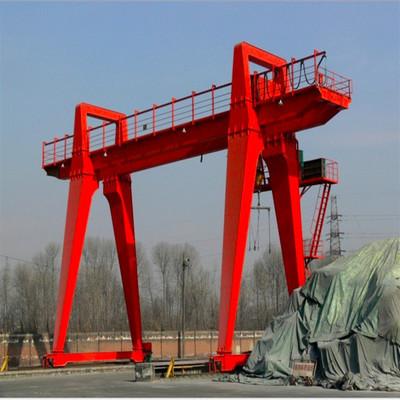

Box Type 25t/5t Double Beam Gantry Crane Railway Station Use
Double Beam Gantry Crane introduction
Double Beam Gantry Crane consists of A-type gantry frame steel
structure, trolley, crane traveling mechanism, electrical system
and other main components. Outdoor operation gantry crane also
equipped with rail clamp, weight restriction device, limit device
of each mechanism, as well as various safety devices in accordance
with prescribed safety procedures of cranes. Sometimes the crane
also equipped with rail clamp device, anchor device, anemometer,
corrective devices, etc. as required.
Double Beam Gantry Crane superiority
1. The box double beam welding structure is adopted to increase the
working space and facilitate the transportation, installation and
maintenance.
2. The trolley adopts special rail cable conductive device.
3. Parts standardization, seriation and generalization.
4. There are two types of crane power supply: cable drum type
(divided into left and right ends) and sliding contact line type
(divided into left and right ends), which can be selected by users.
Technical parameters
| Model | Double Girder Gantry Crane | Note |
| Crane Capacity | 25t/5t | |
| Span | 30m+5m | External cantilever 5meters |
| Main Lifting Height | 13.5m | |
| Aux. Lifting Height | 14m | |
| Trolley Cover | Rain-proof cover included | |
| Main Lifting Speed | 7.7m/min | |
| Aux. Lifting Speed | 8.5m/min | |
| Cross Traveling Speed | 37.2m/min | |
| Long Traveling Speed | 30m/min | |
| Control Method | Cabin with Joystick Controller | |
| Control Voltage | 110V AC | |
| Motor Protection Level | IP55 | |
| Motor Isolation Grade | F | |
| Power Supply | 380V 50HZ 3P | |
| Working Temperature | -20℃~50℃ | |
| Electrical Insulation Class | H | - |
| Working Class | M7 | 24hours operating |
| Max. Wheel Load | 195KN | |
| Total Power | 105.5KW | |
| Self -Weight | 85000kg | |
The parameters in the picture are for reference only and can be
customized according to the customer's requirements.
Product application
(1)High site utilization
(2)Large scope of work
(3)It has a wide range of adaptations
(4)It has strong universality,
(5)Generally used in port yard, etc
