    M6 150 Ton Double Girder Gantry Crane Heavy Duty Large Loading Capacity

    Ask Lasest Price
    Brand Name : Silence
    Model Number : MG
    Certification : ISO CE
    Payment Terms : L/C, T/T
    Supply Ability : 1 set
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    M6 150 Ton Double Girder Gantry Crane Heavy Duty Large Loading Capacity

    M6 150 Ton Double Girder Gantry Crane Heavy Duty Large Loading Capacity

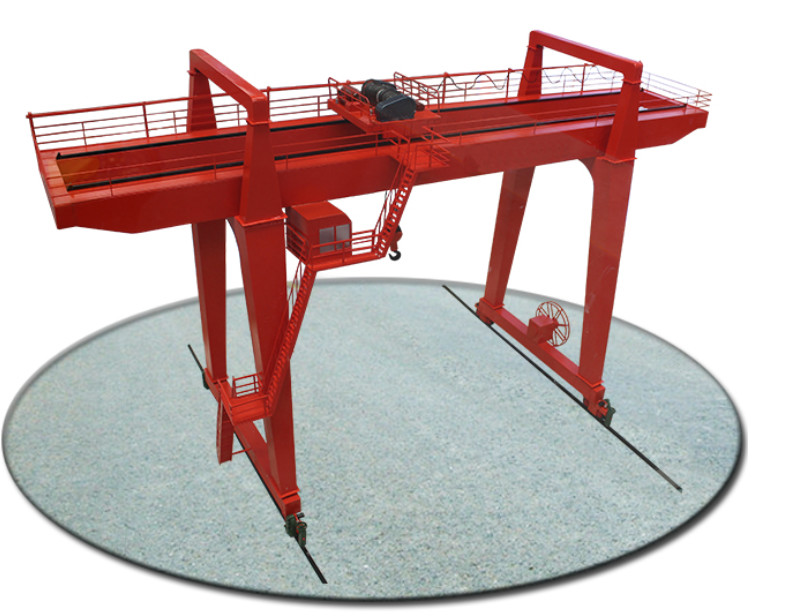

    Double Girder Gantry Crane introduction


    It is composed of double main girder, four supporting legs, two sets sills, hoisting trolley, cab and electrical control system, among which the main girder and supporting leg could be box type or truss type structure, box type is a stronger and compact design, while the truss type has more powerful wind resistance, so if your place is a windy area and the crane works outdoor, the truss is a better choice. As to the control method, it could be ground control, remote control, cabin control or both. If the working temperature is high, air conditioner can be equiped in cabin for the operator.


    Crane parts details


    Strong Main Beams


    Q235B Mn carbon structural steel with seamless once forming technology more strong and elegant.


    Strong box type with standard deflection


    End Beam


    Modular end carriage, direct driving


    Compacted size, high efficiency


    Flexible joint, smoothly running


    Wheel


    Intermedium quenching by top technique machinery


    42CrMo alloy forged wheel


    high strength


    Lifting Trolley


    * Work duty:M6


    * Low height, light weight, saving construction costs


    * Smart driving, higher efficiency


    * Stepless control


    * IP55 / H Insulation


    * Centralized lubrication


    Motors On Trolley


    * Three-in-one type


    * Stepless travelling


    * Squirrel-cage, Synchronous


    * Speed 4800rpm


    * Class IP55 protection


    Electromagnetic Disc Brake


    Hook


    DIN 34CrMo4 hook, Class T


    M6 150 Ton Double Girder Gantry Crane Heavy Duty Large Loading Capacity

    Technical parameters


    SIDescriptionsReference Data
    1Lift capacity3 ton ~300 tons
    2Span3 meters ~ 35 meters
    3Lift height6 meters ~18meters
    4Work dutyA5~A7
    5Control methodRemote control or Cabin control
    6Electrical partsCHINT or International brand
    7MotorChinese famous brand or International brand
    8PaintsChinese famous brand "Lehua"
    9BearingsChinese famous brand "HRB"
    10Lift speed0~10M/Min
    11Cross travel speed20~30M/Min
    12Long travel speed30~40M/Min

    Manufacturing shop

    M6 150 Ton Double Girder Gantry Crane Heavy Duty Large Loading Capacity
