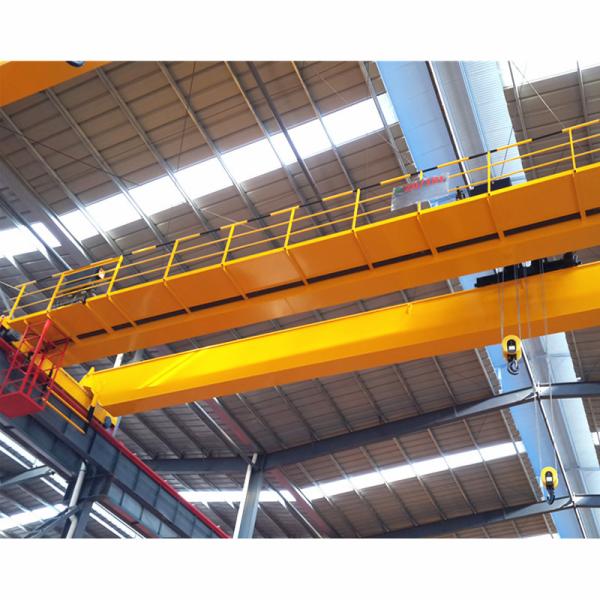

32T Overhead Travelling Crane With Hoist Trolley Crab Mechanism
Overhead Travelling Crane Meanly used to lift and pour melting
metal, transport red-hot solid metal in cast house, foundry shop,
steel mill, etc. When lifting melting metal, the main hook hanging
the two ears of the steel ladle with a gantry hook while the aux.
hook sway to pour out.
Technical parameter of Overhead Travelling Crane
Capacity (ton) | 1 | 2 | 3 | 5 | 10 | 16 | 20 |
Span (m) | 7.5~22.5 |
Lifting height (m) | 6, 9, 12, 18,24,30 |
Working duty | A3 |
Control way | Pendant control or Remote control |
Power source | 380V 50HZ 3phase |
Wheel diameter (mm) | 37-70 |
Electric hoist Lifting and traveling mechanism |
Electric hoist model | CD1 single speed, MD1 double speed |
Lifting speed | Single | 8 | 7 | 3.5 |
(m/min) | Double | 0.8 / 8 | 0.7 / 7 | 0.35/3.5 |
Traveling speed (m/min) | 20 or 30 |
Crane traveling mechanism |
Traveling speed (m/min) | 20 or 30 |
Motor power (KW) | 0.8×2, 1.5×2 | 2.2×2 |
Features of Overhead Travelling Crane
As it consists of two main bridges, it becomes a sturdy and robust
construction.
It is specifically designed for assisting heavy-duty operations.
It is cost-effective when compared to a single girder crane as it
is capable of lifting heavy loads.
It is utilized at any capacity, where a high hook lift is required.
Because the hook can be pulled up between the girders.
It has a lifting capacity of up to 250 tons.
It consists of alloy steel, hardened, precision-cut gears.
It consists of foot mounted hydraulic thruster brakes, which is
used for the hoist.
It has a full-length platform on the long travel drive of the side
girder.
Benefits to using Double Girder EOT Crane
Efficiency—Overhead cranes are more efficient than using a group of
workers or tow motors to lift and move material and can work up to
2-3 times faster. Think about how a manufacturer, mill, or
warehouse can streamline their processes and procedures by
introducing an overhead crane to automate the lifting, maneuvering,
and unloading of materials at their facility.
Safety—Another advantage of installing an overhead crane in a
manufacturing, assembly, or warehousing facility. Cranes can be
used to lift and move materials in extreme environments and can
handle corrosive or dangerous materials like hot metals, chemicals,
and heavy loads. A workstation or jib crane can be put in place to
help workers move heavy objects in a controlled manner and help cut
down on repetitive motion injuries and muscle strains.
Installation procedure of overhead travelling crane
Package and Delivery
