    Battery Type 100 Ton Material Transfer Cart Simple Structure

    Ask Lasest Price
    Brand Name : Silence
    Model Number : KPJ
    Certification : ISO
    Price : USD 3000-30000/set
    Payment Terms : L/C, T/T
    Supply Ability : 20 sets
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Battery Type 100 Ton Material Transfer Cart Simple Structure

    Battery Type 100 Ton Material Transfer Cart Simple Structure

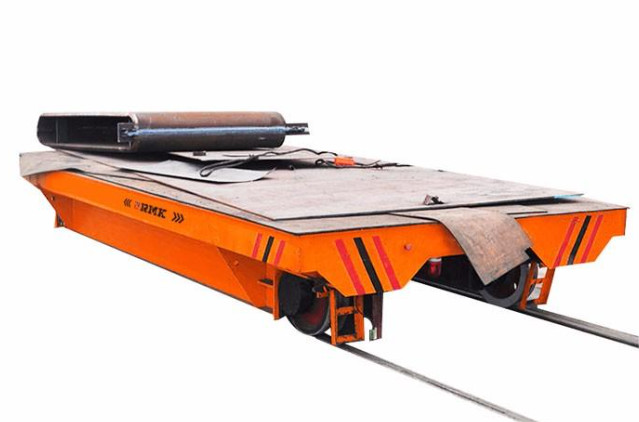

    The Material Transfer Cart is powered by a cable from the drum, which is assembled under the working platform. This type transfer cart is simple in structure, low in cost, and suitable for harsh working environments, high-temperature environments, explosion-proof environment and high-strength working environment.
    Battery Type 100 Ton Material Transfer Cart Simple Structure
    The cable drum transfer cart is a good choice if meeting the following features:

    1. The running distance of the transfer cart is less than 200m

    2. The transfer cart is required to run on the rails

    3. The whole working route needn't turn

    4. The working frequency is higher

    Battery Type 100 Ton Material Transfer Cart Simple Structure

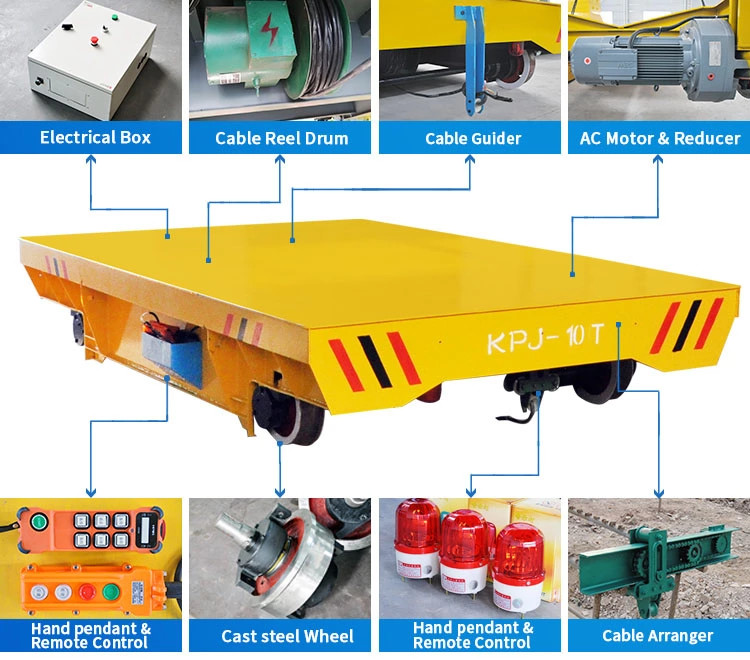

    Detailed parts:
    1. The steel plate material of electric flat car is q235-B
    2, electric flat car whole vehicle insulation treatment
    3. The electric flat car is powered by the running track
    The motor:
    1. The DC motor has its own brake
    2. Dc motor brake is electromagnetic brake
    3. The bearing of dc motor adopts IKO
    The reducer:
    1. The noise of reducer is very low
    2. The installation of reduction gear is very convenient
    3. Running speed of electric flat car: 20m/min

    Battery Type 100 Ton Material Transfer Cart Simple Structure

    Technical parameters

    ModleKPJ-10TKPJ-30TKPJ-50TKPJ-80TKPJ-100TKPJ-150T
    Table Size (m)3.6*2.0*0.54.5*2.2*0.655.5*2.5*0.76.0*2.6*0.96.5*2.8*1.010*3.0*1.2
    PowerCable Drum
    Rail inner Gauge1435mm1435mm1435mm1800mm2000mm2000mm
    Wheel Dia.350mm400mm500mm600mm600mm600mm
    Running Speed25m/min20m/min20m/min20m/min20m/min20m/min
    Motor Power1.5kw4kw5.5kw7.5kw11kw15kw
    Max Wheel Load42.6Kn110.4Kn174Kn278.4Kn343.8Kn265.2Kn
    Reference weight4t6.5t7.8t12.3t14.1t26.2t
    Recommend RailP18P38P43P50QU100QU100



    Product application

    The transfer cart can be applied all kinds of environment.
    Such as high temperature,dust, explosion proof, waterproof ,spray paint, corrosion,
    Battery Type 100 Ton Material Transfer Cart Simple Structure
