2.3t Mold Shipbuilding Material Transfer Trolley Large Capacity

    Buy cheap 2.3t Mold Shipbuilding Material Transfer Trolley Large Capacity from wholesalers

    Buy cheap 2.3t Mold Shipbuilding Material Transfer Trolley Large Capacity from wholesalers
    • Buy cheap 2.3t Mold Shipbuilding Material Transfer Trolley Large Capacity from wholesalers

    2.3t Mold Shipbuilding Material Transfer Trolley Large Capacity

    Ask Lasest Price
    Brand Name : Silence
    Model Number : KPX
    Certification : ISO CE
    Price : USD 3000-30000/set
    Payment Terms : L/C, T/T
    Supply Ability : 5 sets
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    2.3t Mold Shipbuilding Material Transfer Trolley Large Capacity

    2.3t Mold Shipbuilding Material Transfer Trolley Large Capacity

    Description of Material Transfer Cart

    Material Transfer Trolley is an alternative transfer cart for rail transfer cars. It overcomes many inconveniences of rail-type electric transfer carts. The trackless electric transfer carts can finish free-turning without rail in the workshop and workshop.

    Technical parameters Of Material Transfer Trolley


    ModelBWP-2TBWP-10TBWP-30TBWP-50TBWP-80TBWP-100T
    Table Size (m)2.0*1.5*0.452.3*2.0*0.553.5*2.2*0.75.5*2.6*0.86.5*2.8*0.956.6*3.0*1.2
    PowerMaintenance Free Battery
    Wheel Base1080mm1650mm1650mm2000mm1950mm2000mm
    Wheel Dia.250mm350mm450mm600mm600mm600mm
    Running Speed0-20m/min0-20m/min0-20m/min0-20m/min0-20m/min0-20m/min
    Motor Power2*1.2kw2*2.2kw2*5.5kw2*7.5kw30kw40kw
    Battery Capacity250Ah250Ah450Ah500Ah800Ah1000Ah
    Battery Volatge24v48v48v48v72v72v
    Max Wheel Load14.4Kn42.6Kn110.4Kn174Kn185Kn190Kn
    Reference weight2.3t4.2t6.8t8t14.6t26.8t


    Remark: the technical parameter of the material handling trackless transfer cart only can be make reference above.
    All can be customized manufacturing as per your true demand. please contact us if any doubt.
    Our professinal engineer will help you solve the transfer problems in any time.

    Advantage of Material Transfer Cart:

    1. High level automation(self propelled/steerable)
    2. The largest capacity can reach to 500t
    3. Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
    4. Robust sturdy cart frame
    5. AC/DC electric engine , diesel engine or pneumatic engine
    6. Excellent gear reducer and motor with high quality, assemblied together perfectly
    7. Remote control&hand pendant control make the opration more convenient.
    8. The speed can be adjusted
    9. Easy operation and maintenance
    10. Famous brand parts, guarantee the quality and prolong the using lifetime
    11. Low noise and do not pollute the environment

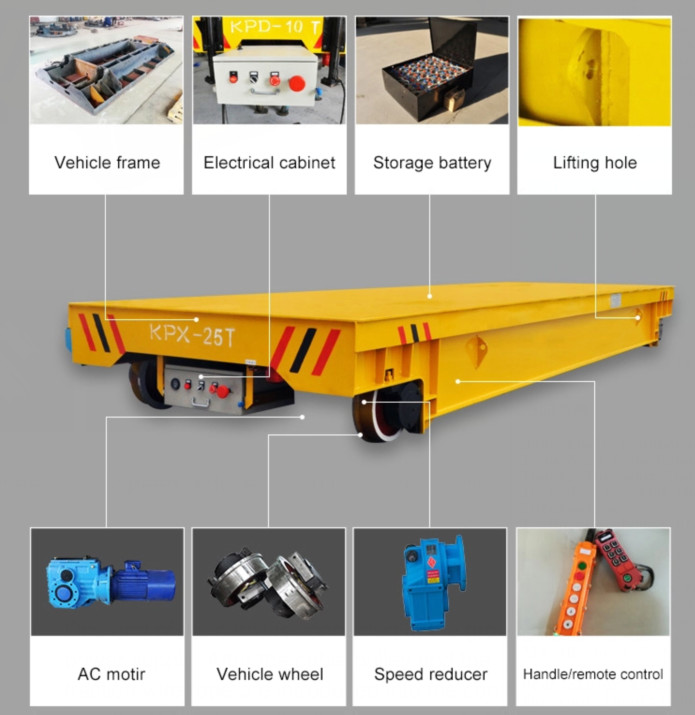

    Details of Material Transfer Cart

    2.3t Mold Shipbuilding Material Transfer Trolley Large Capacity

    Application of Material Transfer Cart

    2.3t Mold Shipbuilding Material Transfer Trolley Large Capacity

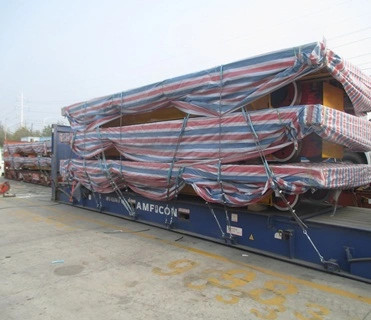

    Packing and shipping

    2.3t Mold Shipbuilding Material Transfer Trolley Large Capacity2.3t Mold Shipbuilding Material Transfer Trolley Large Capacity
