Warehouse 32 Ton Single Girder Gantry Crane Remote Control
Product presentation of 32 Ton Single Girder Gantry Crane
1. Simple and compact structure, steady performance.
2. Easy to install and high efficiency.
3. Overload, low voltage protective device are equipped.
4. Pendent control and wireless remote control.
Technical parameters of 32 Ton Single Girder Gantry Crane
| Cap(t) | 5 |
| Span(m) | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 |
| Lifting Height(m) | 18 |
| Duty | A5 |
| Speed(m/min) | Hook | 1.07-10.07 |
| Crab | 3.3-33 |
| Trolley | 6.8-68 |
| Limit dimention (mm) | L1 | 950 |
| L2 | 1280 |
| h | 196.5 | 124.5 |
| Main dimention (mm) | H0 | 320 | 340 |
| H | 1206.5 | 1278.5 |
| H1 | 2608.5 | 2658.5 | 2758 | 2858 | 2790 | 2900 | 2940 | 2990 |
| B | 5160 | 5460 |
| K | 1500 |
| B1 | 150 |
| F | 258 | 308 | 408 | 508 | 440 | 540 | 590 | 640 |
| Max. Wheel Loading(kN) | 51 | 55 | 60 | 65 | 71 | 77 | 83 | 87 |
| Power (kW) | 16.5 | 18.1 |
| Crane Rail Recommended | 43kg/m |
| Power supply | 3 Phase A.C. 50Hz 380V |
Product features of 32 Ton Single Girder Gantry Crane

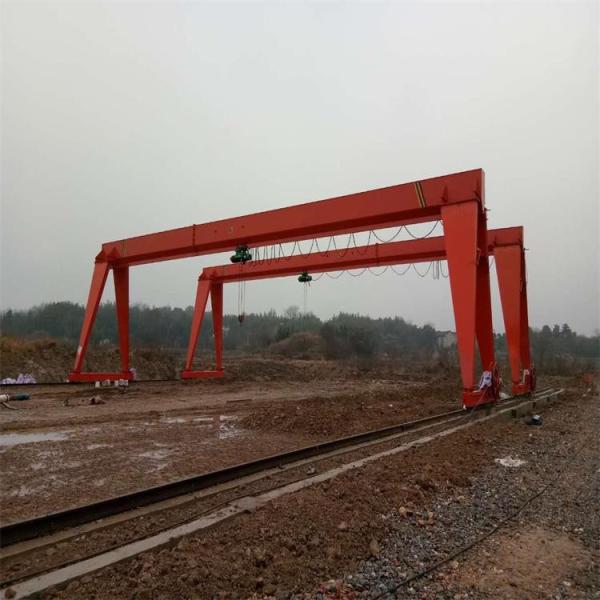

1, MH type electric hoist gantry crane has a gantry frame
structure, its bearing main beam is installed under two legs, the
cart can walk on the ground pre-paved track.It has the
characteristics of high site utilization rate, large operation
range, wide adaptability and strong versatility, and is widely used
in outdoor cargo yard, material yard and bulk cargo loading and
unloading operation.
2, MH type electric hoist I] crane complete machine and CD1, MD1
electric hoist matching use, electric hoist hanging on the main
beam I-steel or the main beam under the edge, its lifting weight is
1T-16T, span is 7.5-28.5m.
The working level is A3-A4, and the working environment temperature
is -25°C ~ 40°C.
3. MH type electric hoist I] crane is provided with two operation
forms: ground and control room.The ground operation usually adopts
the operation mode of handle button and remote control.The
operation room can be divided into open type and closed type, which
can be divided into left and right loading according to the
situation.
4, MH type electric hoist gantry crane usually uses conical brake
motor as lifting and operating use, reduction device adopts gear
reduction drive;The whole machine is equipped with lifting,
lowering limit switch, trolley travel switch, handle button,
overload limiter and other accessories.
Company Introduction
Henan Silence Industry Co., Ltd focuses on lifting resolutions for
customers. We provide design, production, and service of different
lifting equipment, which covers electric wire rope hoist, chain
hoist, jib crane, bridge crane, gantry crane, etc.
Under principle Customer First, Modern Crane people always provide
customers with first-class products and excellent service. SILENCE
CRANE people follow a strict QUALITY CONTROL system which ensures
the perfection of each lifting equipment.
Our products have completely passed ISO9001, CE, GS and other
quality system certificates. Thanks to our high-quality products
and outstanding customer service.
SILENCE CRANE has earned a reputation from our customers and gained
a global sales network reaching Brazil, India, Philippine, Ukraine,
Argentina, Spanish, Malaysia and the other 30 countries.
With the commitment of customer satisfaction, we are expecting to
widen and deepen the cooperation and communication with all friends
all over the world.
Packing and shipping
