High Quality No Seam Slip contact For Enclosed Bus bar System
Sliding Line
Product details
Safety seamless bus bar is an energy-saving seamless bus bar
developed by referring to foreign advanced experience and combining
with national conditions. The protective shell is made of
engineering plastic and aluminum-plastic alloy.
1. The crane conductor busbar is widely used in the crane, hoist
fields.
2. The conductor busbar is oxygen-free copper, perfect
conductivity, pure quality, well proportioned and bright color. the
insulating materials are PVC, adding the specialty of
shock-resistance and ultraviolet-resistance, fine, physical
property.
3. It has a simple structure and easy on installation.
Overhead crane bus bar with spares parts is produced using advanced
technology, 3-pole, 4-pole, and 6-pole seamless wire contact lines.
They have a constant power supply, deliver oxygen-free copper power
supply, pressure drop force, excellent electrical conductivity, and
good contact.
Easy to install, easy to wear, easy to replace, more convenient to
transport, not easy to cause damage to the trolley line, prolong
life. Advanced product technology, fine workmanship, beautiful
appearance, it is ideal for upgrading the industrial system
products, extensively absorb the essence of science and technology,
forge ahead, pioneering and innovative, the product has formed
serialization, standardization, and can be designed and
manufactured according to user requirements
Product superiority
1. Easy to install, replace and transport.
2. Stable operation, fast speed, good conductivity and contact
performance
3. No joint, continuous power supply
4. Small space, low noise
5. Low voltage drop
6. Long service life
7. The minimum bend radius reaches 750mm.
The material of Crane Power Supply Busbar
Conducive material: 99.99% Oxygen-free copper
Housing material: PVC (heat resistance property 70℃--40℃ below)
Technical parameters
| Type | Poles | Conductor Cross Section (mm2) | Max Current (A) |
| 761003 | 3 | 3*10mm2 | 50A |
| 761503 | 3 | 3*15mm2 | 80A |
| 752003 | 3 | 3*20mm2 | 100A |
| 762503 | 3 | 3*25mm2 | 120A |
| 763503 | 3 | 3*35mm2 | 140A |
| 761004 | 4 | 4*10mm2 | 50A |
| 761504 | 4 | 3*15mm2+1*10mm2 | 80A |
| 762004 | 4 | 3*20mm2+1*10mm2 | 100A |
| 762504 | 4 | 3*25mm2+1*12.5mm2 | 120A |
| 763504 | 4 | 3*35mm2+1*15mm2 | 140A |
| 761006 | 6 | 6*10mm2 | 50A |
| 751506 | 6 | 6*15mm2 | 80A |
Notes: The foregoing attached table shall only be used for
reference.
The actual application shall be appropriately modified according to
customers' requirements.
Application scenarios
With advanced technology, skillful manufacture and beautiful
design, the Power Supply Trolley Slide Wire is suitable for
machinery works, small size steel factories, low power hoisting,
cranes, monorails, electric hoists, electric tools, stacking
systems and wildly used in the Lifting industry. (ambient
temperature is< 55℃)
Product practical application scenarios are diversified, with a
wide range of customer groups.
Installation diagram
There are two ways to install busbar, horizontal installation and
vertical installation.

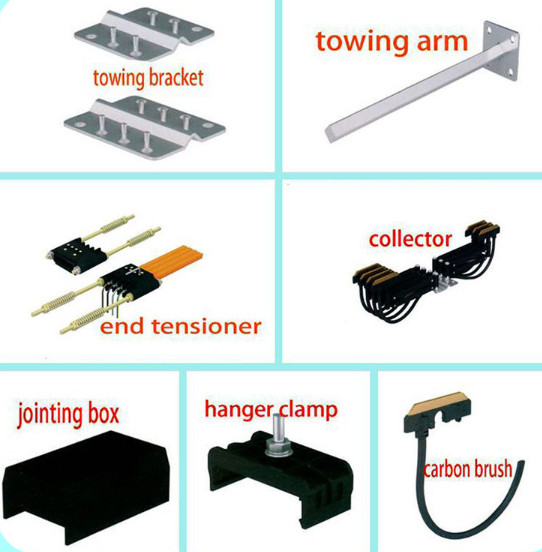

Parts
