Customized Heavy Duty Electric Winch 10T 20T 30T Single / Double Drum Good Stability

Henan Silence Industry Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Customized Heavy Duty Electric Winch 10T 20T 30T Single / Double Drum Good Stability from wholesalers

    Buy cheap Customized Heavy Duty Electric Winch 10T 20T 30T Single / Double Drum Good Stability from wholesalers
    • Buy cheap Customized Heavy Duty Electric Winch 10T 20T 30T Single / Double Drum Good Stability from wholesalers
    • Buy cheap Customized Heavy Duty Electric Winch 10T 20T 30T Single / Double Drum Good Stability from wholesalers
    • Buy cheap Customized Heavy Duty Electric Winch 10T 20T 30T Single / Double Drum Good Stability from wholesalers
    • Buy cheap Customized Heavy Duty Electric Winch 10T 20T 30T Single / Double Drum Good Stability from wholesalers

    Customized Heavy Duty Electric Winch 10T 20T 30T Single / Double Drum Good Stability

    Ask Lasest Price
    Brand Name : Silence
    Model Number : JM JK
    Certification : ISO CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 set/per month
    Delivery Time : 15 days after receiving deposit
    • Product Details
    • Company Profile

    Customized Heavy Duty Electric Winch 10T 20T 30T Single / Double Drum Good Stability

    Heavy type single/double drum customized electric winch 10 ton 20 ton 30 ton

    Product description


    Electric Winch is drum winding wire rope or chain ascension or traction weight of small-sized lifting equipment.


    Winch can be vertical, horizontal or inclined pulling heavy objects.Divided into manual winch and electric hoist winch.Now is given priority to with electric winch, Can be used alone, also can be made in lifting, such as road construction and mine machinery components, because of simple operation, large amount of rope and displacement easily and widely used.Mainly used in construction, water conservancy, forestry, mining, port, etc material lift or drag.


    Product details

    1. Pure copper motor: pure copper motor has the characteristics of magnetic sensitivity, high melting point and low loss, and large cooling port.

    2. High-quality reel: the reel is made of seamless steel tube, strong and durable without deformation.

    3. Channel steel base: thicken the channel steel base to enhance the stability of the machine.

    4. Refined steel enclosure: the motor enclosure is made of high-quality refined steel, which protects the internal parts from being assembled tightly.

    Technical parameters

    ModelRated pull of rope(KN)Wire rope speed rating(m/min)Minimum wire rope diameter(mm)MotorTotal weight(kg)Size
    typepowerlengthwidthheight
    JM110159.3YZR 112M-62.2270740690490
    JM2201613

    YZR

    160M-6

    7.5550940900570
    JM3309.515.5YZR 160M-67.5110014301160910
    JM5509.521.5

    YZR

    160L-6

    11180016201260948
    JM10100830YZR 200L-622380022801500950
    JM161601037

    YZR

    250M-8

    378800375024001850
    JM202001043YZR 280S-8459900395025601950
    JM25250948YZR 280M-85513500435028002030
    JM32320952YZR 315S-87520000450028502100


    Manufacturing shop

    Customized Heavy Duty Electric Winch 10T 20T 30T Single / Double Drum Good Stability
    Professional equipment production workshop, product quality assurance, production process orderly division of labor.

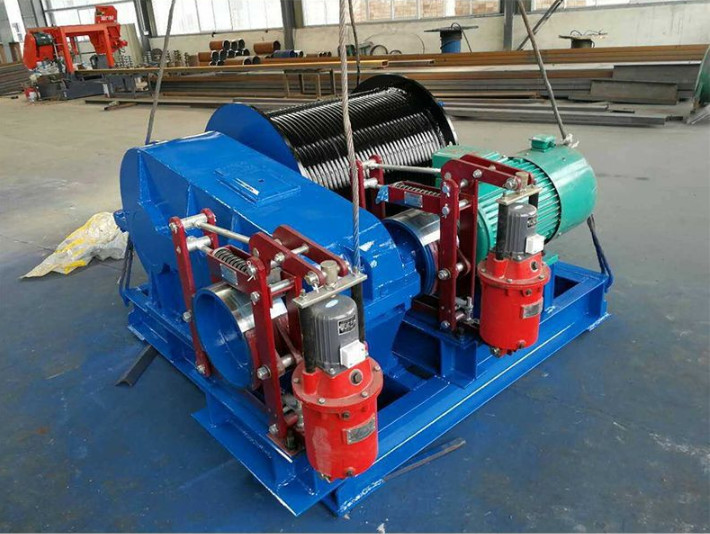

    Product display
    Customized Heavy Duty Electric Winch 10T 20T 30T Single / Double Drum Good Stability

    Packaging

    Customized Heavy Duty Electric Winch 10T 20T 30T Single / Double Drum Good Stability
