5 Ton Material Transfer Cart Material Handling Equipment Used In
Warehouses
Configuration instruction

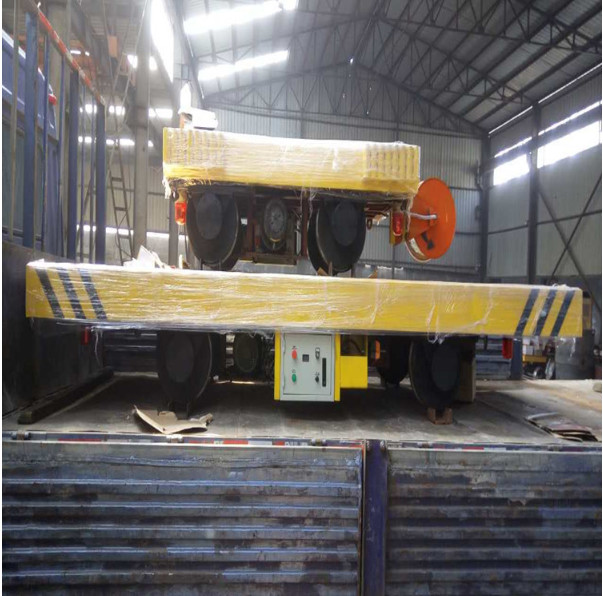

BXC series battery power flat car, is the rail flat car provided by
the battery power, storage battery installed in the flat car, the
power supply through the electrical control system, to provide
power to the dc traction motor. To start, stop, forward, backward,
speed adjustment, etc.
Functional description
Battery electric flat car, also called electric across a car, rail
inside the plant is a kind of electric transportation vehicles, has
simple structure, convenient use, load can be strong, not afraid
dirty not afraid to hit, easy maintenance, long service life, etc,
because of its convenient, economical, practical, easy to clean,
and many other advantages, as for the enterprise internal and
factory and workshop between regular, fixed schedule when moving
heavy objects of transport.
1. Load-bearing transportation is the most basic and important
function of electric flat cars. This series of flat cars can run on
s-shaped, c-shaped and other arc-shaped tracks.
2. The hydraulic lifting system can be installed on the electric
flat car to achieve lifting and other functions.
3. The flat car can realize the power and energy of the side dump
by the hydraulic device.
4. Safety devices can be installed on the electric flat car, such
as proximity switch, stop in case of contact, alarm system, buffer,
etc. to achieve the corresponding safety functions.
5. According to the reasonable requirements of customers, the
company can develop the corresponding non-standard electric flat
vehicle to achieve the required functions
Security configuration
1. Stop and sound and light alarm device can effectively protect
the personal safety of staff.
2. Limit position and anti-collision buffer device can effectively
prevent the end of the electric flat car from derailing and
effectively avoid the damage to the car body.
In an emergency, the emergency stop button can help stop the flat
car.
Product superiority
1. This series of flat cars has the advantages of safety, mobility
and flexibility, the operation is not limited by distance, the
speed is adjustable, the dc motor of flat cars has the advantages
of stable start, large start torque, small impact on the reducer,
low voltage, long service life and so on.
The track laying requirements are not high, suitable for use
frequency is not high, long-distance transport occasions.
2. The transfer cart adopts dc motor, suitable for frequent use,
with higher safety and mobility flexibility.
It can be equipped with hard tooth surface reducer to make the
maintenance of flat car easier.
3. This series of electric flat car mechanism is relatively simple,
convenient for maintenance, easy to disassemble and assemble,
strong bearing capacity, long service life, low requirement for
track laying, low cost, suitable for harsh environment,
high-temperature environment, and other occasions.
4. Transfer cart is suitable for all kinds of environment, can work
in indoor, outdoor, flammable and explosive environment, can also
be added to the flat car hydraulic device, buffer device. Simple
operation, in the case of transport distance is far, can be added
on the flat car with the operating platform, to meet the customer
long-distance transport, to achieve a humanized design.
5. PLC control system can be added to the flat car, automatic rail
car, greatly increase the work efficiency.
Technical parameters
| Model | BXC-2T | BXC-20T | BXC-50T | BXC-63T | BXC-100T | BXC-150T |
| Capacity(T) | 2 | 20 | 50 | 63 | 100 | 150 |
| Wheel base(mm) | 1200 | 2800 | 4200 | 4300 | 4900 | 7000 |
| wheel back distance(mm) | 1200 | 1435 | 1435 | 1435 | 2000 | 2000 |
| Wheel diameter(mm) | 270 | 350 | 500 | 600 | 600 | 600 |
| Number of wheel(pcs) | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground clearance(mm) | 50 | 50 | 50 | 75 | 75 | 75 |
| Speed(m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Power(Kw) | 1 | 2.2 | 5 | 8 | 10 | 15 |
| Accumulator capacity(A/H) | 180 | 180 | 330 | 400 | 440 | 600 |
| Battery voltage(V) | 24 | 48 | 48 | 72 | 72 | 72 |
