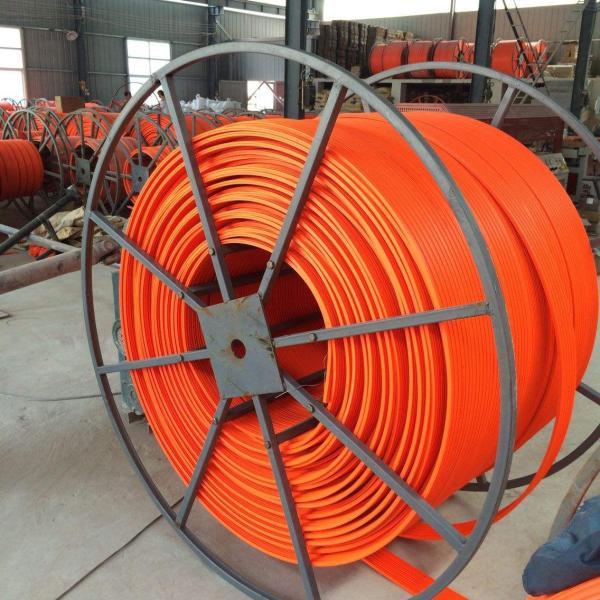

Silence Supply Pvc Housing Copper Closed Power Clamp Pole H Type
Trolley Busbar
Product details
Safety seamless bus bar is an energy-saving seamless bus bar
developed by referring to foreign advanced experience and combining
with national conditions. The protective shell is made of
engineering plastic and aluminum-plastic alloy.
The conductor is aluminum alloy (with stainless steel inside) or
pure copper. It is not affected by rain, snow, and frost. It is
suitable for outdoor, water fog, acid fog, conductive dust and
other poor environments.
Safety sliding contact line for moving equipment power supply,
consists of two parts, sliding guide rail (fixed part, into the
power supply, often guide by single 4 m long/root or can be
connected with the 6 m/root), collector (sliding parts, can be in
sliding orbit or sliding contact with the copper bar and took in
electricity, collector for connected to the mobile motor).
Product superiority
1. 99.99% Oxygen-free copper
2. No joint, continuous power supply
3. Small space, Low noise
4. Low voltage drop
5. Stable operation, fast speed, good conductivity and contact
performance
6. Easy to install, replace and transport
7. Long service life
8. The minimum bend radius reaches 750mm
The material of Crane Power Supply Busbar
Conducive material: 99.99% Oxygen-free copper
Housing material: PVC (heat resistance property 70℃--40℃ below)
Technical parameters
| Type | Poles | Conductor Cross Section (mm2) | Max Current (A) |
| 761003 | 3 | 3*10mm2 | 50A |
| 761503 | 3 | 3*15mm2 | 80A |
| 752003 | 3 | 3*20mm2 | 100A |
| 762503 | 3 | 3*25mm2 | 120A |
| 763503 | 3 | 3*35mm2 | 140A |
| 761004 | 4 | 4*10mm2 | 50A |
| 761504 | 4 | 3*15mm2+1*10mm2 | 80A |
| 762004 | 4 | 3*20mm2+1*10mm2 | 100A |
| 762504 | 4 | 3*25mm2+1*12.5mm2 | 120A |
| 763504 | 4 | 3*35mm2+1*15mm2 | 140A |
| 761006 | 6 | 6*10mm2 | 50A |
| 751506 | 6 | 6*15mm2 | 80A |
Notes: The foregoing attached table shall only be used for
reference.
The actual application shall be appropriately modified according to
customers' requirements.
Application scenarios
With advanced technology, skillful manufacture and beautiful
design, the Power Supply Trolley Slide Wire is suitable for
machinery works, small size steel factories, low power hoisting,
cranes, monorails, electric hoists, electric tools, stacking
systems and wildly used in the Lifting industry. (ambient
temperature is< 55℃)
Product practical application scenarios are diversified, with a
wide range of customer groups.
Installation diagram
There are two ways to install busbar, horizontal installation and
vertical installation.
Parts
