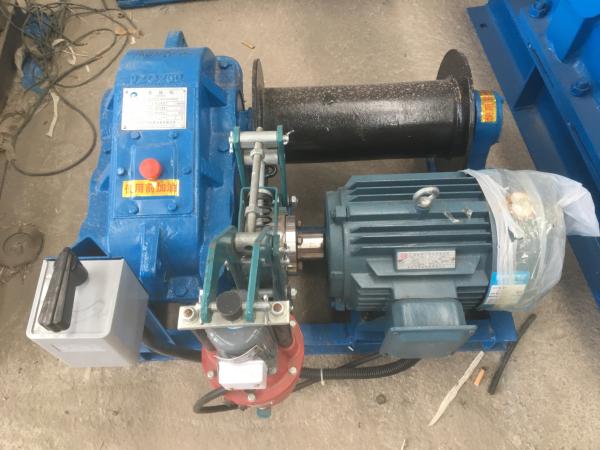

Portable 3 Ton Industrial Electric Winch , Mini Lightweight Electric Winch

Henan Silence Industry Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Portable 3 Ton Industrial Electric Winch , Mini Lightweight Electric Winch from wholesalers

    Buy cheap Portable 3 Ton Industrial Electric Winch , Mini Lightweight Electric Winch from wholesalers
    • Buy cheap Portable 3 Ton Industrial Electric Winch , Mini Lightweight Electric Winch from wholesalers
    • Buy cheap Portable 3 Ton Industrial Electric Winch , Mini Lightweight Electric Winch from wholesalers
    • Buy cheap Portable 3 Ton Industrial Electric Winch , Mini Lightweight Electric Winch from wholesalers
    • Buy cheap Portable 3 Ton Industrial Electric Winch , Mini Lightweight Electric Winch from wholesalers

    Portable 3 Ton Industrial Electric Winch , Mini Lightweight Electric Winch

    Ask Lasest Price
    Brand Name : SILENCE
    Model Number : JK
    Certification : ISO CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 set/per month
    Delivery Time : 15 days after receiving deposit
    • Product Details
    • Company Profile

    Portable 3 Ton Industrial Electric Winch , Mini Lightweight Electric Winch

    3Ton Electrical mini light portable type electric wire rope winch

    Product description:


    JM1-JM8 model is Gear Reducer Transmission Electric Winch.
    This series of electric winch is mainly used to lift, pull and drag heavy objects, Installation and dismounting of every kind of Big-mid size Reinforce concrete,Steel structure and machinery equipments.
    This series of electric winch is suitable to be used in civil construction and installation projects of Construction Installation Company, Mining Area, Factory.


    JM10-JM65 model electric winch is mainly used on Installation and dismounting of every Big-special big Reinforce concrete,Steel structure and machinery equipments.
    Its structure features are orderly wirerope, safe and reliable lifting.
    The series of electric winch is suitable to be used in road and bridge projects in every kind of Bridge,Port,Wharf and Engineering Equipments Installation of big factories and mines projects.


    Features:

    1. Cap.:1-65T
    2. Lifting height: 2400m
    3. Lifting speed: single/VVVF
    4. Voltage: 220v/380v/400v/415v
    5. Top quality with competitive price.
    6. Easy to install and high quality.
    7. Compact structure and reasonable design.
    8. Widely used in the double beam bridge crane and gantry crane.
    9. Overload protection, Shock protective, Voltage lower protect function, Explosion-proof performance.


    Components:

    • Drum & drum shaft:
    The drum diameter not less than 19 times of the wire rope diameter.
    The drum wall can withstand the wrapped tight force of wire rope; the side can withstand the lateral force produced by wire rope.
    The distance between drum side plate peripheral to the outermost roll rope not less than twice of the wire rope diameter.


    •Reducer:
    Reducer is mainly composed of transmission parts, shaft, bearing, box and its accessories.
    The function of reducer is to match speed and transfer torque between motor and working machine or actuator.


    Hydraulic pusher:

    The hydraulic pusher is power source of brake. The abnormal use will lead to the brake fail to work.


    •Electrical equipment:
    Electric systems are Siemens brand Schneider brand or CHINT brand---Best in China. Include Overload protection system, Shock protection system, Low voltage protect function system, Explosion-proof system system. Has a good safety performance.


    Technical parameters


    ModelRated pull of rope(KN)Wire rope speed rating(m/min)Minimum wire rope diameter(mm)MotorTotal weight(kg)Size
    typepowerlengthwidthheight
    JM110159.3YZR 112M-62.2270740690490
    JM2201613

    YZR

    160M-6

    7.5550940900570
    JM3309.515.5YZR 160M-67.5110014301160910
    JM5509.521.5

    YZR

    160L-6

    11180016201260948
    JM10100830YZR 200L-622380022801500950
    JM161601037

    YZR

    250M-8

    378800375024001850
    JM202001043YZR 280S-8459900395025601950
    JM25250948YZR 280M-85513500435028002030
    JM32320952YZR 315S-87520000450028502100

    Product display


    Packaging
