42CrMo Customized Overhead Crane Cast Steel Double Flange Rail Car
Wheels
Product description
The railway wagon wheels are widely used in the overhead crane and
gantry crane, rail transfer cart, transportation carriage, mill and
airlines vehicle, railway locomotive, construction machinery and so
on.

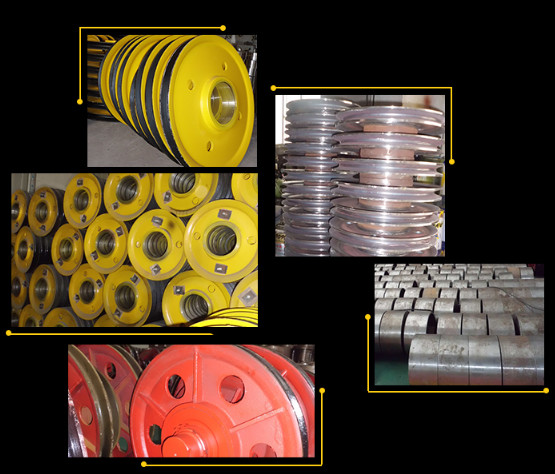

Our company has our own a completely mature production line of
railway wagon wheel, we can provide the railway wagon wheel with
different materials, such as ZG430640 cast steel, 60#,65 # , 65Mn,
42CrMoA or according to your requirements.
Product process
Foundry technology
Casting is a casting liquid molding.
The advantages of casting are that it is used to manufacture parts
with complex shapes that are difficult to forge and require high
strength and plasticity, and the cost is low.
Forging Technology
Forging is a plastic deformation process, forging forming workpiece
can improve the internal structure of the organization, good
mechanical properties, grain uniformity, used for the important
workpiece.
Product superiority
1. The material inspection and flaw detection after the completion
of blank production are related to the stability of material
performance, which is particularly important.
2. Machining, cutting, drilling, chamfering, deburring and
polishing, strictly controlling the size and every detail.
3. Heat treatment can improve the comprehensive properties of
toughness, hardness, wear resistance, fatigue strength and so on.
4. The bearing adopts the domestic and foreign first-line brand,
ensuring the quality of the most core drive.
5. Wheel detection: size, material, hardness, flaw detection, etc.
6. Appearance and packaging: finish cleaning, painting, anti-rust
oil, plastic film covering, wooden case packing.
Technical parameters
| No. | Item | Drg.No | DIMENSIONS(mm) | | | | | | | | | | | | | | | Weight |
| | | D(h9) | D1 | A | A1 | h | h1 | b | b1 | d | I | d4 | L | L1 | G | b2 | |
| 1 | Drive wheelsΦ500 | 1764 | 500 | 540 | 280 | 213.5 | 310 | 140 | 230 | 50 | 75 | 105 | M24 | 400 | 230 | 79.5 | 20 | 284 |
| 2 | Drive wheelsΦ500 | 1765 | 500 | 540 | 280 | 213.5 | 310 | 140 | 230 | 50 | | | M24 | | 230 | | | 277 |
| 3 | Drive wheelsΦ600 | 1766 | 600 | 640 | 280 | 213 | 310 | 140 | 230 | 50 | 85 | 130 | M24 | 415 | 230 | 90 | 22 | 332 |
| 4 | Drive wheelsΦ600 | 1767 | 600 | 640 | 280 | 213 | 310 | 140 | 230 | 50 | | | M24 | 415 | 230 | | | 322 |
| 5 | Drive wheelsΦ700 | 1768 | 700 | 750 | 315 | 240 | 350 | 160 | 235 | 80 | 90 | 130 | M30 | 455 | 260 | 96 | 25 | 508 |
| 6 | Drive wheelsΦ700 | 1769 | 700 | 750 | 315 | 240 | 350 | 160 | 235 | 80 | | | M30 | | 260 | | | 495 |
| 7 | Drive wheelsΦ800 | 1770 | 800 | 850 | 365 | 280 | 410 | 190 | 275 | 90 | 95 | 130 | M30 | 500 | 300 | 100 | 25 | 756 |
| 8 | Drive wheelsΦ800 | 1771 | 800 | 850 | 365 | 280 | 410 | 190 | 275 | 90 | | | M30 | | 300 | | | 743 |
Application
Cast railway wheel installed on gantry cranes, they run on rails
indoor or outdoor;
Cast railway wheel for rail trolly with double flange, they are the
driving system with motor & reducer;
Cast railway wheel installed on crane trolleys, they are lifting
mechanism for the double girder cranes;
Cast railway wheel applied for ship ferry, they are applied to
transfer ship from the ocean to shore side.
