    Light Weight Low Headroom Electric Chain Hoist With Trolley High Safety Performance

    Ask Lasest Price
    Brand Name : Silence
    Model Number : HHBB
    Certification : ISO CE
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 3000 sets/per month
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

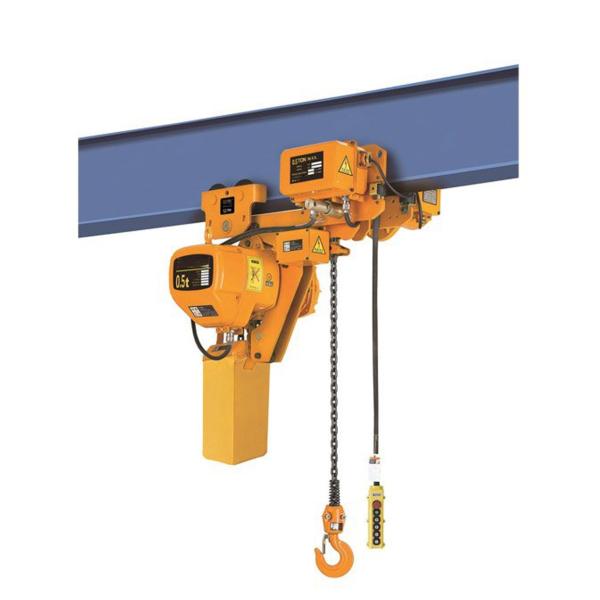

    Light Weight Low Headroom Electric Chain Hoist With Trolley High Safety Performance

    Manufacturers low headroom hoist 5ton electric chain hoist with trolley


    Product description

    1. Motor brake: adopt advanced magnetic cone brake to provide reliable stopping

    2. Chain guide: high quality design provides smooth and quiet guidign og the lifting chain

    3. Heavy duty motor: Squirrel cage parallel rotor motor; Cooling fins reduces the temperature of hoist and keep it working; The IP 55 protection can withstand demanding enviroment

    4. Load chain: Carburizing chain or FEC chain is heat-treated for long life and endures harsh conditions

    5. Hook: hot forged high tensile steel, rigid and durable, fitted with safety latch to ensure safety lifting

    6. Push button pendant: water-Proof and insulated, provides light and durable switching controls.

    7. Phase error relay to prevent mortor from running at incorrect wire connection


    Technical parameters


    Electric trolley type

    Light Weight Low Headroom Electric Chain Hoist With Trolley High Safety Performance

    SIZE SPECIFICATION
    MODELHABDE
    HHBB0.5-01635460230288165
    HHBB01-01650520260300176
    HHBB01-02660460230288165
    HHBB1.5-01770615295430265
    HHBB02-01770615295430265
    HHBB02-02815520260300236
    HHBB2.5-01830615295430265
    HHBB03-01830615295430265
    HHBB03-02930615295430320
    HHBB03-03940520260350205
    HHBB05-021015615295430325
    HHBB7.5-031200615295505320
    HHBB10-041190630315890445

    Fixed type

    Light Weight Low Headroom Electric Chain Hoist With Trolley High Safety Performance

    SIZE SPECIFICATION
    MODELHABDE
    HHBB0.5-01530460230288165
    HHBB01-01650520260300176
    HHBB01-02680460230288165
    HHBB1.5-01800615295430265
    HHBB02-01800615295430265
    HHBB02-02835520260300236
    HHBB2.5-01845615295430265
    HHBB03-01845615295430265
    HHBB03-02950615295430320
    HHBB03-03950520260350205
    HHBB05-021030615295430325
    HHBB7.5-031380615295505320
    HHBB10-041400630315890445

    Product details


    Shell: light aluminum alloy case, light and strong, high heat dissipation rate, fully sealed design suitable for use in poor operating conditions.


    Reverse phase protection device: it is a special electrical device. When the power connection is wrong, the control circuit cannot move.


    Switch: there are switch devices on and off heavy lifting to make the motor stop automatically to prevent the chain from exceeding and ensure safety.


    24V/36V device: in case of leakage in the switch during operation, it can prevent other accidents.


    Side magnetic brake device: this device can realize the instantaneous brake when the power is cut off.


    Chain bag: light, beautiful and durable.


    Chain: imported FEC80 super heat treatment alloy steel chain.


    Product superiority


    1. Light weight


    2. High safety performance


    3. Dual braking system


    4. Emergency switch setting


    Packaging and production line


    Light Weight Low Headroom Electric Chain Hoist With Trolley High Safety PerformanceLight Weight Low Headroom Electric Chain Hoist With Trolley High Safety Performance
