10 ton China Famous Brand Single Beam Gantry Crane For Industrial Factory

Product presentation

Single girder gantry crane is a kind of track traveling mid-light type crane, used together with CD, MD, HC model electrical hoist, according to the shape, it also divided into MH type and MHLP type gantry crane.

MH type single girder gantry crane has box type and truss type, the former has good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, the MH gantry crane also has cantilever and non-cantilever gantry crane.

If you have cantilevers, the crane can load the goods to the crane edge through the supporting legs, which is very convenient and high efficiency.

MHLP type single girder gantry crane is L-type partial hanging gantry crane, with small size and light-duty, special for putting steel pipes, girders, or other long materials into the special place, widely used in steel plant, concrete girder yard.

Construction features

1. Metal part

This electric hoist gantry crane is mainly composed of the main beam, supporting leg and lower beam.

The main beam and lower beam are box structure welded by four steel plates, and the supporting leg is box structure welded by four steel plates.

The electric hoist walks directly under the i-steel lower flange plate of the main beam.

For convenient storage and transportation, the main beam, supporting leg and lower beam is connected with M20 bolts to become one.

2. Electric hoist

Wire rope lifting, single speed, with traveling trolley and reducer, drum and motor, include overload limiter switch

Protection class F class

Drop Forged Hook, Plain ‘C’ type, Swiveling on Thrust Bearing, equipped with belt buckle and wire ropes sheath

Nanjing special brand motor, soft start for smooth running, long design service life, the best motor in China

Self-produced. Drums made of high-quality seamless steel processed by the CNC machine.

Rope guide made of engineering plastic, lightweight, excellent wear resistance, reducing tear and wear of wire rope

High-quality wire rope, Strength of extension: 1670 N/m2

3. Operating mechanism

This product is in the form of separate drive, drive braking by cone rotor motor to complete;

Transmission is the use of "one open and one close" gear transmission.

4. Electrical equipment

Module control speed, micro-speed and double speed;

Traveling and lifting smoothly;

The power for trolley moving adopts flat cable, sliding smoothly;

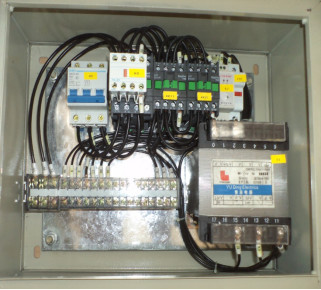

Control box layout is reasonable, easy to repair;

Protection class IP55;

Optional main power source ;

All external cable line number with the mark;

Safety smooth touchline, high conductivity, small pressure drop;

Lightweight, installation convenience;

Set electric taxi speed is high, ensure continuous power supply;

Optional speed control module, and can realize the micro speed and double speed.

5. The specification of this product is expressed as follows:

(1).Ground controlling

Example: lifting weight 5t, span 7m, working-level A3.

Representation: MH5-7A3-D JB/t5663-2008

D is for ground control.

6.rail system:

Crane rails, clamp plate & press plate

High quality reputed make

Technical parameters
