Good Quality Wireless Remote Cd1 Electric Wire Rope Hoist 1 Ton 2
Ton 5ton 10ton

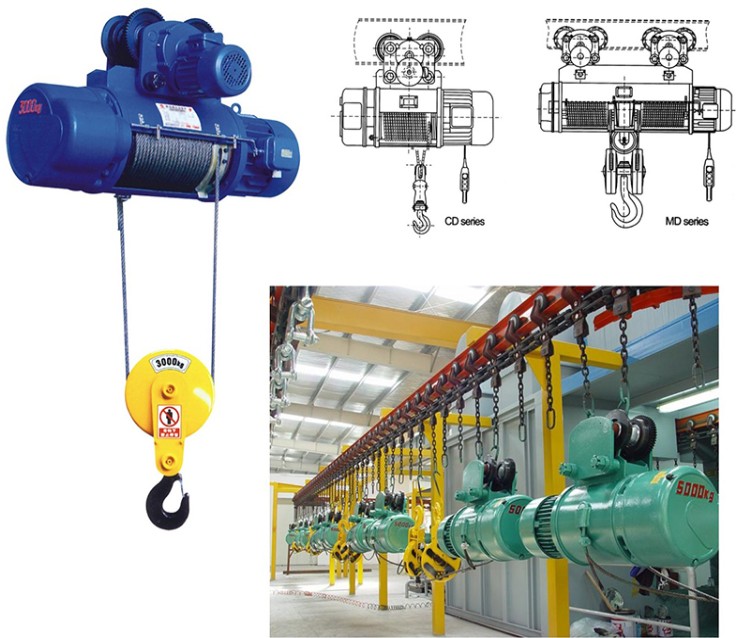

General introduction
CD/ MD series electric hoist is an improvement electric hoist that
it can completely resolved the problem of that the electric hoist
reaches the up limited position, guide rope device is embrittle ent
cracking, the wire rope is disorder, the reducer is losing oil, the
frequent trouble about electric and so on
Product Parameter
| type | 0.25ton | 0.5ton | 1ton | 2ton | 3ton | 5ton | 10ton |
| capacity (t) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 |
| lifting height(m) | 3-9 | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 |
| lifting speed(m/min) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 7(7/0.7) |
| traveling speed(m/min) | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| wire rope type | 5.1NAT-6*37+FC 1670 | 5.1NAT-6*37+FC 1670 | 7.4NAT-6*37+FC 1670 | 11NAT-6*37+FC 1670 | 13NAT-6*37+FC 1670 | 15NAT-6*37+FC 1670 | 15NAT-6*37+FC 1670 |
| I-beam track model | 16-22b | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 25a-63c |
| circle orbit minimum radius(m) | 0.8 | 1.5 | 1.5-4 | 2-4 | 2-4 | 2.5-5 | 3.5-9 |
| voltage | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| frequency | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Phase | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
This parameter is for reference only, specific requirements can
contact us for customization.

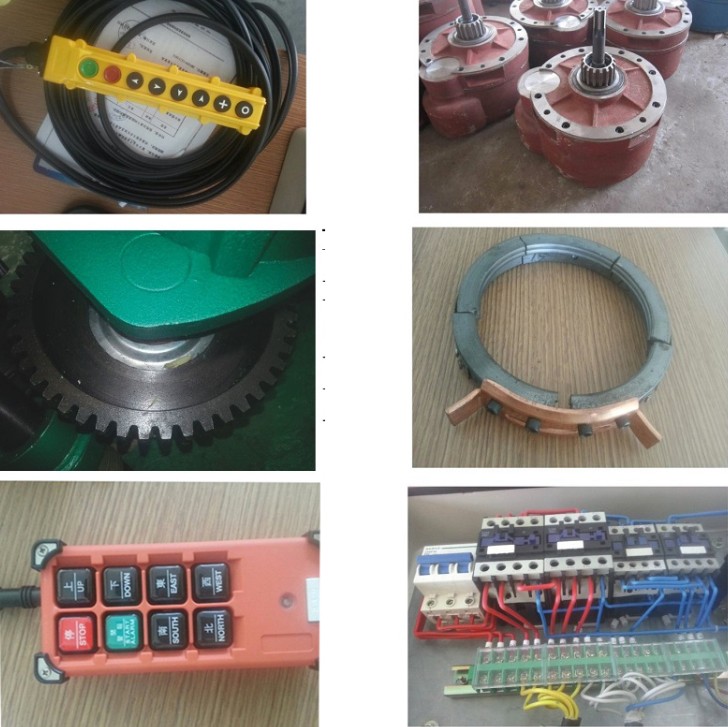

Product feature
Lifting motor
■ Asynchronous conical rotor motor is installed on electric wire
rope hoist and the inside brake is also ensure the safety of the
hoist
■ Large toque, stable operation, compact structure, small size,
light weight
■ Effective braking, safe operation, easy maintenance
■ High safety with the B or F class insulation, IP44, IP54
protection
Travelling motor
Electric wire rope hoist travelling motor has the features of
stable starting, effective braking, full coverage of class B or F
insulation, IP44, IP54 protection, IC0141 self-cooling and so on.
Lifting reducer
■ High quality three-level dead axle helical gear rotating body
ensures long serving life
■ Gear and axle is made of high intensity alloy steel which had
been treated with heat
■ Box and cover are made from superior cast iron
■ Lifting reducer has great speed ration and high accuracy
■ Lifting reducer has compact structure, and is quiet during
operation with high working efficiency.
■ It is easy to assemble and disassemble
Rope drum
■ Weld rope drum is light in terms of dead weight
■ Coil casing is made from superior cast iron with high intensity
■ Rope guide is used to avoid intertwining of wire rope and ensure
the normal operation of electric wire rope hoist
■ No disturbance between rope sockets and has long working life
■ The rope drum is high quality and is easily interchangeable
Steel wire rope
Electric wire rope hoist rope adopts GB/ T 20118-2006 (6 * 37+1)
hoisting wire rope, which has the characteristics of good tensile
resistance, good flexibility, good impact resistance and long
working life.
Hook
Electric wire rope hoist hook is made of high quality carbon steel,
high safety and can withstand triple static load. Electric wire
rope gourd with spring-type strong safety lock, not loose slings.
Fire stopper
Fire stopper with adjustable mechanical memory structure, high
sensitivity, with limited block to prevent hook top impact. The
fire-proof plug has the advantages of high safety and durability,
convenient installation and debugging, sensitive reaction and small
size.
Overload limiter
■ Present the data based on your electric wire rope hoist working
conditions
■ Show accurate weight value clearly
■ Modular, low power design, jam proof
■ Ensure the safe operation of electric wire rope hoist
■ Long service life of appliance components
Electrical part
■ Control cabinet is with reasonable layout and easy to be repaired
■ Protection class IP55
■ Optional main power source is equipped on electric wire rope
hoist
■ Safe trolley conductor with high conductivity and small pressure
drop
■ Light dead weight, easy to install
■ Collector ensure continuing power supply
Control Mode
Electric wire rope hoist has two control methods: pendant control
and remote control, with simple, safe, waterproof and anti-fall
features.
Product usage
Wire rope hoist is widely used in the following fields:
1. Used for lifting heavy objects in light textile industrial
warehouses, hospitals, shops and workshops of food factories. And
the river wharves for heavy loads.
2. It is used for hoisting prefabricated components and cement
pipes in the construction industry and pipeline operation.
3. Used for material warehouse and cargo yard, hoisting and
transporting materials, stacking and palletizing. For installation
of equipment and lifting of heavy objects in the workshop of
machinery factory and repair shop.
