Small Portable Gantry Crane 3000kg Span 3 meters with 3 meters
lifting height
Product presentation
Portable gantry crane has single structure, safety and reliable,
easy control, swivel flexible, large working space, low cost and
other features. It is widely suitable to workshop, ware house and
others needed lifting work areas. We have PT-1 Model mobile type
and PT-2 Model fixed type two kinds mini gantry frames. The mobile
type gantry frames can move to many different working areas, it is
much more flexible than other kinds of gantry frames or cranes.
Safety feature
Crane traveling limit switch
Weight overload protection device
Lifting height limit device
Voltage lower protection function
Phase sequence protection function
Emergency stop function
Rain cover for outside hoist, driving units, electrical cubicle.
Warning indicator: flashing lights and warning sound.
Wireless infra-detector for anti-collusion
Advantages of portable gantry crane
1. The lifting weight of the gantry frame can reach 10 tons, with a
variety of installation configurations and spans. Can be used with
hand hoist, chain hoist, wire rope hoist.
2. Prefabricated standard modular design makes movement easier.
3. It can be installed on any ground without putting pressure on
the roof structure of the building.
4. High lifting capacity.
5. Wide applicability and can be applied in many materials handling
environments.
6. Economical for individual work units.
7. Easy installation, reducing installation time and cost.
8. It can increase operators' satisfaction.
9. The safe operating environment can be realized.
10. Reduce the labor force and improve production efficiency.
Product details
1. Steel structure: Q235B carbon steel structure steel adopts a
seamless forming process, more solid and beautiful:
Galvanized epoxy resin paint
Three layers of paint
2. Electric trolley type chain hoist:
Chain lift, single-speed
High strength low alloy steel structure, with motor and high
wear-resistant wheels, compact structure, easy to install
Insulation class
3. Welding and spraying
4. Class 8.8 high strength bolts
5. The safety screw
6. Iron core polyurethane universal brake casters

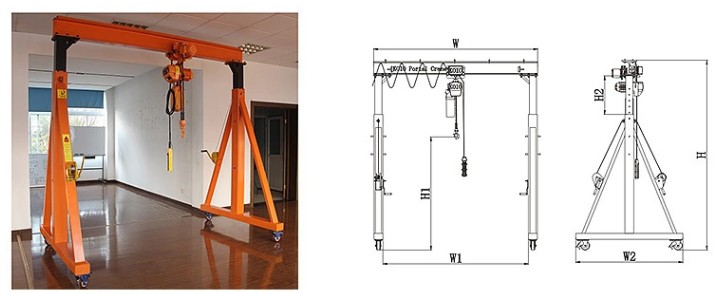

Technical parameters
| Model | Capacity(ton) | Total height(m) | Lifting height(m) | Internal width(m) | external width(m) | H(mm) |
| PT2-2 | 1 | 2.6-4 | 3.39 | 3 | 2.76 | 410 |
| 1 | 3.5-5 | 4.39 | 3 | 2.76 | 410 |
| 2 | 2.6-4 | 3.215 | 3 | 2.69 | 535 |
| 2 | 3.5-5 | 4.215 | 3 | 2.69 | 535 |
| 3 | 2.6-4 | 3.015 | 3 | 2.69 | 685 |
| 3 | 3.5-5 | 4.015 | 3 | 2.69 | 685 |
| 5 | 2.6-4 | 2.910 | 3 | 2.61 | 740 |
| 5 | 3.5-5 | 3.910 | 3 | 2.61 | 740 |
FAQ
1. Can u send me your price list ?
Sorry dear friend, as you know, if u are enduser , we can customize
your gantry crane according your working environment. So pls tell
me your information bellow, so i can give your quick offer .
a: Lift capacity b: Lift height c: Span length d: Power source f:
Working environment.
2. Can u draw for us ?
Yes , we have good experienced technicians , we can design and draw
for your own portal gantry crane according your requirements to
solution your problems.
3. Operating methods for selection ?
A : Pendent controller with push buttons
B : wireless controller
We integrate all circuit in the controller to control the gantry
crane move front and back , the hoist lift up and down , travel
left and right .
4 . Can u provide the lifting tools series ?
Sure, we can provide any other lifting machinery you need , such as
pallet stacker , truck and so on .
5. How to install the mobile gantry crane ?
We can send u the install operate manual or video , it’s easy to
install the crane, but if u need our engineer can be your side.
6. What is your lead time ?
The lead time is 15 days for one set .
