10 ton Chinese supplier Free Standing Pillar Column mounted slewing
Jib crane
Product presentation
Jib crane is used with PK type electric chain hoist or CD, MD type
electric hoist. It consists of column, swing jib, electric hoist,
drive device and electrical control system.

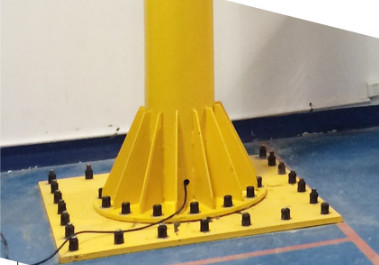

The bottom of column is fixed on the concrete foundation by the
anchor bolts, driving device is driven by the motor to rotate swing
jib, and the electric hoist reciprocates and runs on swing jib.
Buy stand column jib crane for workshop has the advantages of
simple structure, convenient operation, small occupation space and
large working range.
And was widely used in machinery manufacturing, automotive,
shipbuilding and other modern industrial production lines, assembly
lines and warehouses, docks, laboratories and other materials
handling operations.
It Is an ideal lifting equipment for improving work efficiency and
working conditions for the enterprise.
Product superiority
1. Column using seamless pipe,main beam use I-beam or KBK beam.
2. Rotation can be manual or motorized.
3. Hoist can be equipped with electric wire rope hoists, electric
chain hoists or manual hoists.
4. Unique structure, safe and reliable, high efficiency and
flexible.
5. Can be customized according to client’s requirements.
6. Easy installation.
Using maintenance technology
1. Operators shall strictly abide by the operation rules of the
crane, and overload is not allowed.
2. Terminal baffle is not allowed to be used as the normal parking
method.
3. The chain or steel rope of the heavy object must be strong
enough and securely tied.
4. Lifting and moving of heavy objects shall be carried out in the
vertical condition.
It is prohibited to drag or forcibly lift heavy objects buried
underground with electric hoist.
5. It is strictly forbidden to stand on the top of lifting heavy
objects and strictly forbidden to walk on the bottom.
6. Do not hang heavy objects in the air after work or rest.
Technical parameters
| Model | BZ0.5 | BZ1 | BZ2 | BZ3 | BZ5 |
| Lifting capacity | T | 0.5 | 1 | 2 | 3 | 5 |
| Max. Lifting height | M | 3 | 3 | 3 | 4 | 4 |
| Max. Horizontal throw | M | 2.6 | 3-4 | 2.9-3.9 | 3.8 | 3.7 |
| Max. Radius of gyration | M | 3.6 | 4-5 | 4-5 | 5 | 5 |
| Max. Rotation moment | T/M | 3 | 6 | 12 | 18 | 27 |
| Angle of revolution | Degree | 360 |
| Lifting speed | Normal | m/min | 8(4) |
| Slow | m/min | 0.8(0.4) |
| Traveling speed | m/min | 20 |
| Angle of revolution speed | m/min | 1 | 0.75 | 0.7 | 0.9 | 0.6 |
Application
According to your needs, we carry out professional customization,
enquiries to provide technical parameters:
1. The capacity: _____ton.
2. The lifting height: ____m.
3. The arm length: ___m.
4. The power supply: ____P____V____Hz.
5. The working condition?
6. The crane, informs the for?
