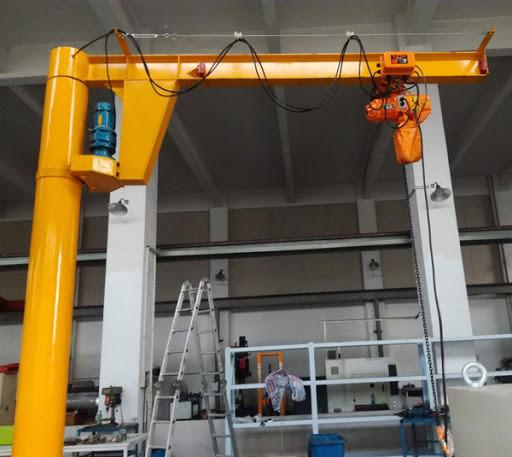

Customized 3 Ton Silence Brand Self-weight Light Fixed Column
Cantilever Crane
Product presentation
BZD type jib crane has the characteristics of simple structure,
easy operation, small space and large operation range.
It is widely used in the material lifting operations in the
production line, assembly line, assembly line, warehouse, dock,
laboratory and other occasions of modern industry such as machinery
manufacturing, automobile, shipbuilding and so on.
It is an ideal lifting equipment for enterprises to improve
efficiency and working conditions.
BZD type jib crane belongs to light and intermediate work system,
rated workload for 0.25T, 0.5T, 1T, 2T, 3T, 5T six specifications.
According to the needs of the job to choose different
specifications of the crane and lifting speed and operating speed.
The machine has two control modes: electric rotary and manual
rotary.
The rotation Angle of the rotating arm can be 180°, 270°, 345°,
360° and other different angles according to the needs of the use
place
Advantages:
1.Free Standing column mounted on concrete foundation, erection and
assembly and operation easily.
2.Pillar Jib Crane can rotate 360, 270 and 180 degree, matched with
electric wire rope hoist or electric chain hoist.
3.Take up small space, easy installation and operation, simple
structure, it is a perfect handling equipment used in small
workshop.
4.Customized design for clients:Customized design according to the
workshop or column size to satisfy clients’ different demand.
Clients also can choose their favorite color for the jib crane
Features:
1) Advanced combination of motor, reducer, brake and drum.
2) Widely used with I-beam.
3) Light duty type
4) Safe traveling
5) Fluent starting and stopping
6) Noise-less
7) Good appearance
8) Easy and convenient maintenance
9) Cost effective
.
Technical parameters
| BZD Type | BZD0.25T | BZD0.5T | BZD1T | BZD2T | BZD3T | BZD5T |
| Lifting Capacity (T) | 0.25 | 0.5 | 1 | 2 | 3 | 5 |
| Maximum radius of rotation Rmax(mm) | 4500 | 4500 | 4500 | 4000 | 4000 | 4000 |
| Minimum radius of rotation R/min(mm) | 800 (manual operation)
1050 (motor-driven) | 900 (manual operation)
1200(motor-driven) | 1140 (manual operation)
1350(motor-driven) | 1380(motor-driven) | 1400(motor-driven) |
|
| Lifting height h(mm) | Generally 3000 |
| Total height H(mm) | 4180 | 4200 | 4280 | 4700 | 4950 | 5150 |
| Arm Length L(mm) | 4950 | 4950 | 5000 | 4570 | 4600 | 4650 |
| Lifting speed(m/min) | 7.1 | 6.8/2.3 | 6.9/2.3 | 6.8/2.3 | 8/0.8 | 8/0.8 |
| Horizontal speed (m/min) | General speed 20/low speed1~10 variable frequency |
| Rotation angle | 180°,270°,360° |
| Voltage | 220~460V 50/60HZ 3PH |
Application:
Modern industry Production line, Assembly line of machining,
Automobile industry, shipbuilding and Material lifting and
warehouse, wharf, Laboratory.
It`s an optimal lifting equipment for enterprise to improve work
efficiency and working conditions.
1. The capacity: _____ton.
2. The lifting height: ____m.
3. The arm length: ___m.
4. The power supply: ____P____V____Hz.
5. The working condition?
6. The crane, informs the for?
Installation:
Before installation, check whether the products and technical
documents are missing or lost according to the packing list;
correct or restore the bending and torsion deformation of the arm
beam, the corrosion of the shaft, and the bruising of the shaft,
etc., caused in transit; in addition, clean and lubricate the
shaft, bearing and other rotating parts every six months.
The installation of the column shall keep the column perpendicular
to the ground. The screws of the floor plate shall be tightened
firmly without looseness.
Bottom plate and foundation should fit well.If equipped with
electric hoist, the foundation should be embedded cable and
grounding facilities, embedded cable from the center of the
foundation, grounding resistance shall not be more than 4 ohms.
