    Customized Outdoor Workshop Column Mounted Jib Crane

    Ask Lasest Price
    Brand Name : Silence
    Model Number : BZD
    Certification : ISO CE
    Price :
    Payment Terms : L/C, T/T
    Supply Ability : 5 sets
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Customized Outdoor Workshop Column Mounted Jib Crane

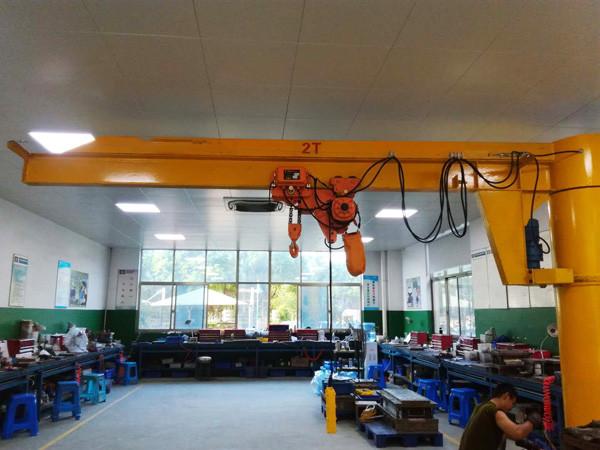

    ISO 2 Ton Free Standing Column Jib Crane Price In Steel Machining Workshop


    Product presentation


    Column mounted jib crane is a kind of crane that fixed on the ground. Its operation area is circular due to its has a rotatable cantilever. Combined with hoist unit like electric hoist, chain hoist, chain block, it can realize transportation of cargos in its coverage.


    Jib crane is lifting equipment to do light weight transport in plants, port, wharf and etc. sometimes it can be used in manufacturing line and assembling line to do jobs need to be fixed position accurately.


    You can purchase two types of cantilever jibs. If you want to carry heavy loads under 20 tons, you can choose heavy duty cantilever jib crane. And you can choose cantilever jib crane if you need to transport loads under 5 tons. Both of them are quiet applicable for short distance and busy work.


    Crane install


    1 . Column installation:


    Lift the column vertically. Set all bolts in foundation right through bolt holes on bottom flange of the column. Then adjust column verticality and tighten all nuts.


    2. Arm/jib/cantileverinstallation:


    Before installation, lifting hoist should be installed on the arm/jib/cantilever and fixed.


    Aligning shaft of column to turntable hole at end of jib/arm, then assemble arm and column together slowly.


    After parts are in place, tighten the fixing bolts. Then install the power supply ring.


    Test beam rotation with a rope and rotating should be flexible without jamming and abnormal phenomenon.


    3. Drive unitinstallation:


    Make cycloid reducer match with ring gear on column. Make sure that drive gear meshes with large ring gear, then fixed the reducer to flange by bolts.


    Speical features:


    360° of uninterupted movement


    Easy pod station installation


    Maximum trolley travel


    Horizontal level adjust


    Vertical level adjust


    Voltage lower protection function


    Lifting height limit device


    Emergency stop system


    Crane traveling limit switch


    Overload protection device


    Customized Outdoor Workshop Column Mounted Jib Crane


    Technical parameters

    Customized Outdoor Workshop Column Mounted Jib Crane

    ModelBZ0.5BZ1BZ2BZ3BZ5
    Lifting capacityT0.51235
    Max. Lifting heightM33344
    Max. Horizontal throwM2.63-42.9-3.93.83.7
    Max. Radius of gyrationM3.64-54-555
    Max. Rotation momentT/M36121827
    Angle of revolutionDegree360
    Lifting speedNormalm/min8(4)
    Slowm/min0.8(0.4)
    Traveling speedm/min20
    Angle of revolution speedm/min10.750.70.90.6

    Application



    According to your needs, we carry out professional customization, enquiries to provide technical parameters:


    1. The capacity: _____ton.


    2. The lifting height: ____m.


    3. The arm length: ___m.


    4. The power supply: ____P____V____Hz.


    5. The working condition?


    6. The crane, informs the for?


    Customized Outdoor Workshop Column Mounted Jib Crane


    Packaging and shipping


    Customized Outdoor Workshop Column Mounted Jib Crane
