Heavy Equipment Crane 12 Month Jib Crane BZ Model Stand 0.25T-10T
Column Type System
Product presentation

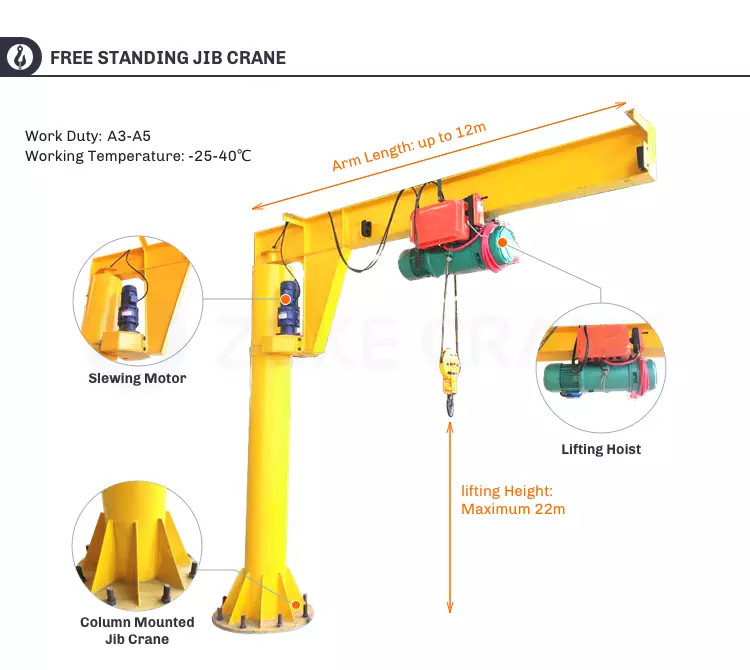

The column slewing crane has the characteristics of high
efficiency, energy saving, saving time, small occupying area, easy
operation and maintenance.
Especially for short distance, high frequent operations, dense
crane operation, it can be installed in any situation you want, it
is a very practical light hoisting equipment.
Silence crane jib column slewing crane also called vertical
cantilever crane, which has the characteristics of high efficiency,
energy saving, ease of operation, small occupation area, easy
operation and maintenance.
Especially for short distance, use frequent, dense crane operation,
it can be installed in any situation you can think of, is a
practical light position hoisting equipment.
Main Features:
1) Small occupying space, no special requirement for plant space,
and indoor or outdoor use all workable.
2) Seamless steel pipe and hot-rolled section steel are used for
pillar arm, light weight and beautiful appearance.
3) Rotation can be operated manual or electric, lifting mechanism
with flexible matching like chain hoist, wire rope hoist, manual
hoist and so on.
4) The power of lifting part supplied by the sliding ring, the
rotation arm 360 degrees arbitrary rotation.
5) All connection parts are bolt connected, which is easy to
install.
6) We have rich product design experiences, also can meet all kinds
of non-standard customization.
Safety Devices for Jib crane:
To guarantee the normal operation of crane and avoid the personal
casualty and mechanical damage, the safety device we provide are
not only the electric protective devices or alarm bell but also
other equipments as following:
1.Overload Limit Switch
2. Rubber Buffers
3.Electric Protective Devices
4.Emergency Stop System
5.Voltage Lower Protection Function
6. Current Overload Protection System
7. Rail Anchoring
8.Lifting Height Limit Device
Technical parameters
| Model | BZ0.5 | BZ1 | BZ2 | BZ3 | BZ5 |
| Lifting capacity | T | 0.5 | 1 | 2 | 3 | 5 |
| Max. Lifting height | M | 3 | 3 | 3 | 4 | 4 |
| Max. Horizontal throw | M | 2.6 | 3-4 | 2.9-3.9 | 3.8 | 3.7 |
| Max. Radius of gyration | M | 3.6 | 4-5 | 4-5 | 5 | 5 |
| Max. Rotation moment | T/M | 3 | 6 | 12 | 18 | 27 |
| Angle of revolution | Degree | 360 |
| Lifting speed | Normal | m/min | 8(4) |
| Slow | m/min | 0.8(0.4) |
| Traveling speed | m/min | 20 |
| Angle of revolution speed | m/min | 1 | 0.75 | 0.7 | 0.9 | 0.6 |
Application
According to your needs, we carry out professional customization,
enquiries to provide technical parameters:
1. The capacity: _____ton.
2. The lifting height: ____m.
3. The arm length: ___m.
4. The power supply: ____P____V____Hz.
5. The working condition?
6. The crane, informs the for?
