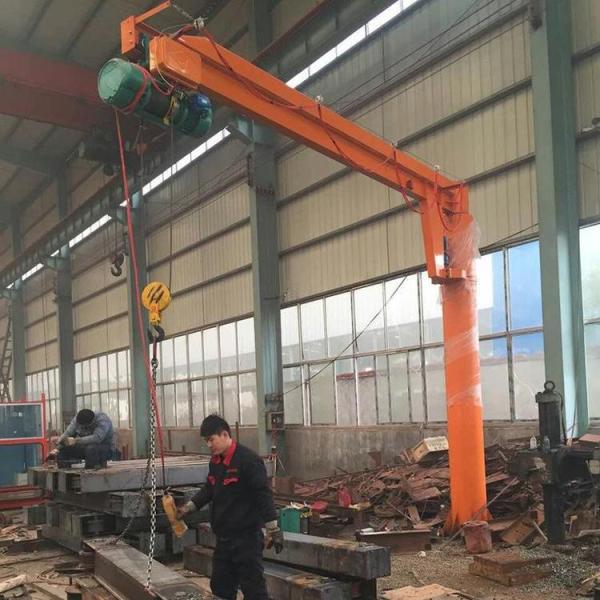

Factory New Style Remote Control 6m Lifting Height Floor Mounted
Jib Crane Price
Product presentation
Cantilever jib crane is made of circular pipe, both ends are welded
bottom plate and rotating shaft respectively, upper part is
installed waist ring track.The bottom plate is fixed with the
concrete ground by chemical bolts to ensure the stability of the
cantilever crane.
There is a through hole on the rotating shaft to realize the hidden
cable threading from the inside of the column.The 360° collector
can be installed on the rotating shaft to enable the cantilever to
achieve nX360° rotation.
The waist ring track is used for the cantilever crane rotation.
There are several through holes on the track for the installation
of the rotation limit block, which can achieve 0-360° Angle limit.
Cantilever jib crane using I-beam and H-shaped steel production,
can be suitable for the installation and operation of all kinds of
chain hoist.Movable stops are installed at both ends to ensure that
the hoist works within a specific stroke.
Environmental conditions
1. The power supply of the crane is three-phase AC, rated frequency
is 50HZ, rated voltage is 380V.
2. The elevation of the crane installation site shall not exceed
2000M.
3. Inflammable, explosive and corrosive gases are not allowed in
the working environment of the crane.
4. The crane is not allowed to lift molten metals, toxic substances
and inflammable and explosive substances.
Use and maintenance
1. Operators shall strictly abide by the crane operation rules, and
overload use is not allowed.
2. The use of terminal baffles as a common method of parking is not
allowed.
3. The chain or steel rope binding the heavy objects must have
sufficient strength and be tied firmly and reliably.
The rope or chain should be filled with padding around the sharp
Angle of the heavy objects.
4. The lifting and moving of heavy objects should be carried out in
a vertical way.
Electric hoist is not allowed to drag or forcibly lift heavy
objects buried in the ground.
5. Lifting heavy objects is strictly prohibited above people,
pedestrians are strictly prohibited below.
6. Heavy objects should not be suspended in the air after work or
during rest.
7. Every six months, accumulations on the lower wing surface of the
beam (at the walking track), rack objects and rack paint shall be
rebrushed or rebrushed according to the peeling situation of the
rotating parts.
Technical parameters
| Model | BZ0.5 | BZ1 | BZ2 | BZ3 | BZ5 |
| Lifting capacity | T | 0.5 | 1 | 2 | 3 | 5 |
| Max. Lifting height | M | 3 | 3 | 3 | 4 | 4 |
| Max. Horizontal throw | M | 2.6 | 3-4 | 2.9-3.9 | 3.8 | 3.7 |
| Max. Radius of gyration | M | 3.6 | 4-5 | 4-5 | 5 | 5 |
| Max. Rotation moment | T/M | 3 | 6 | 12 | 18 | 27 |
| Angle of revolution | Degree | 360 |
| Lifting speed | Normal | m/min | 8(4) |
| Slow | m/min | 0.8(0.4) |
| Traveling speed | m/min | 20 |
| Angle of revolution speed | m/min | 1 | 0.75 | 0.7 | 0.9 | 0.6 |
