Hot Selling Strong HSH Type 5 Ton 1.5m Lever Hoist Ratchet Manual
Pull Lift
Product descriptions:
The hand lever hoist is a clamp body that ACTS on the load in
rotation by manually pulling the handle with the help of the lever
principle to obtain
the linear traction matching the load and drive the load to run.It
has the advantages of compact structure, light weight, small size,
easy to carry,
safe and reliable, long service life, small hand pulling force,
small wear to wire rope and so on.It can be used for lifting,
traction, descent,
calibration and other operations.If equipped with a special device,
not only can non-linear traction work, and can be very convenient
to choose the
appropriate operation position, or with a smaller tonnage of the
machine doubled to expand its load capacity, for a larger tonnage
of the load can
be used several machines and tools parallel work.

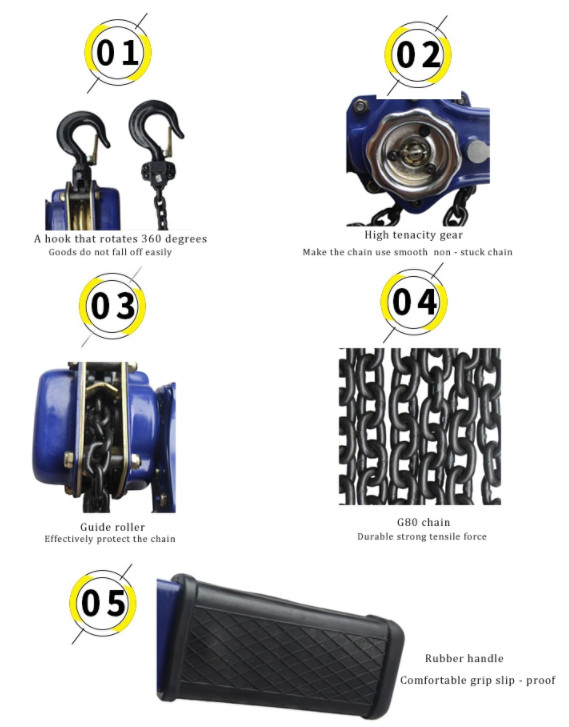

Features:
1. Capacities: from 250kg to 9,000kg
2. Quality System Certification:ISO9001 GS, CE
3. Warranty:1 year
4. Lever block is a kind of highly efficient and versatile hand
operated hoisting appliance.
5.It is particularly used in the narrow places, the open air and
overhead places for pulling and stretching work at any angle.
6.The lever block is safe, reliable and durable.
7.The lever block is of excellent performance, easy operation and
convenience maintenance.
8.The lever block is of small volume, light weight and portable in
size.
9.The lever block is of high efficiency, fast lifting and light
hand pull.
10.The structure is advanced and the appearance of lever hoist is
attractive
Usage:
1, choose the appropriate size of the hand lever hoist for use, is
strictly prohibited overload.
2. Carry out safety inspection on the hand-pulling hoist before
use, and carry out no-load test on the hand-pulling hoist, and
adjust the position of
the hook reasonably according to the actual requirements.
3, the adjustment method of the lower hook is: pull the dial block,
make the dial block in the "N" position, rotate counterclockwise
and pull the
release wheel, at this time, the clutch is in the open state, pull
out the chain, you can easily adjust the hook position, after the
adjustment should
be clockwise rotation handwheel, make it back to the original
position.
4. After the adjustment, hang the weight in the middle of the hook
and lift it by pulling the handle
Product Parameter
| HSH type lever hoist Specification |
| Capacity(t) | 0.75T | 1.5T | 3T | 6T | 9T |
| Standard lifting height(m) | 1.5m | 1.5m | 1.5m | 1.5m | 1.5m |
| Testing load(KG) | 1125kg | 2500kg | 4500kg | 7500kg | 11250kg |
| Tensile force of full loading | 250 | 310 | 410 | 420 | 420 |
| Strands of load chain | 1 | 1 | 2 | 3 | 4 |
| Handle length(mm) | 285mm | 410mm | 410mm | 410mm | 410mm |
| Gross weight(Kg) | 6.7kg | 11kg | 17.5kg | 25.5kg | 49.8kg |
