Newly Workshop 12T Gantry Workshop Crane Moveable Light-weight
Mobile Gantry
Product description of Portable Gantry Crane
Hoist lifting simple gantry crane is usually used in assembly
workshop,machining workshop, assembly mold,research
laboratory,maintenance workshop,small freight station, warehouse,
repair shops etc.
Especially suitable for the environment which is limited by the
working area clearance.

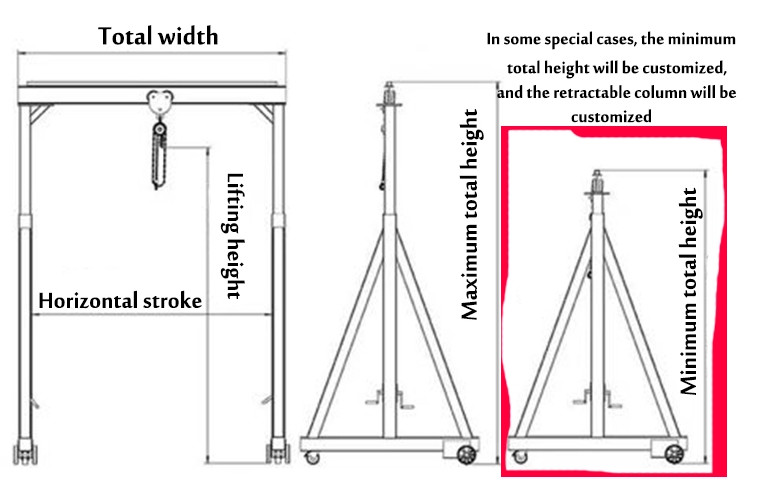

Technical parameters of Portable Gantry Crane
| Product Name | Hand push simple gantry crane |
| Lift Capacity | 3-20t for heavy&light duty works |
| Lift Height | 0-12m |
| Span | 1-30m |
| Lifting Mechanism | Wire Rope Electric Hoist |
| Control Method | Pendant Control,Remote Control |
| Power Source | 3 Phase 380V 50HZ |
| Color | Costomized |
| Work Duty | A3-A5 |
| Lifting speed | 0-8m/min |
| Electrical Parts | CHINT or Schneider |
Features of Portable Gantry Crane
1.Easy operation and assembly
2. Adjustable height and span can be more suitable for the working
environment (if need )
3. Material can be steel or Aluminum
4.Wear-resistant polyurethane wheels; small rolling resistance,
easy to move; safe and reliable
5. Flexible wheel can rotate 360℃
Applications of Portable Gantry Crane
This product is a regular crane widely used at open ground and
warehouse loading and unloading materials, It has two controlliing
methods,namely ground controlling and room controlling.
* Engineering industry
* Ports
* Granite industry
* Steel Yards
* Cement Pipe industry
* Open Yard
* Storages places
* Container Depots
* Shipyards
For quick quotation, please fill in the following information:
1. The lifting capacity of the crane
2. The lifting height (from floor to the hook center)
3. The span (the distance between the two rails)
4. The power source in your country. Is 380V/50Hz/3P or
415V/50Hz/3P?
5. Your nearest port
FAQ:
1. Please send the following requirements:
1). Lifting capacity 2). Lifting height 3). Power supply 4). Span
5) Span or lifting height is adjustable?
2. Warranty : One Year
3. Installation : Engineer available to service machine overseas
4.Payment Terms : T/T ,LC ,WU,Cash ---30% as deposit ,70% before
delivery.
5.Delivery Time : Within 7---10 days after your payment
