PT Model Light Duty 3 Ton Indoor Height Adjustable Portable Gantry
Crane
Product description of Portable Gantry Crane

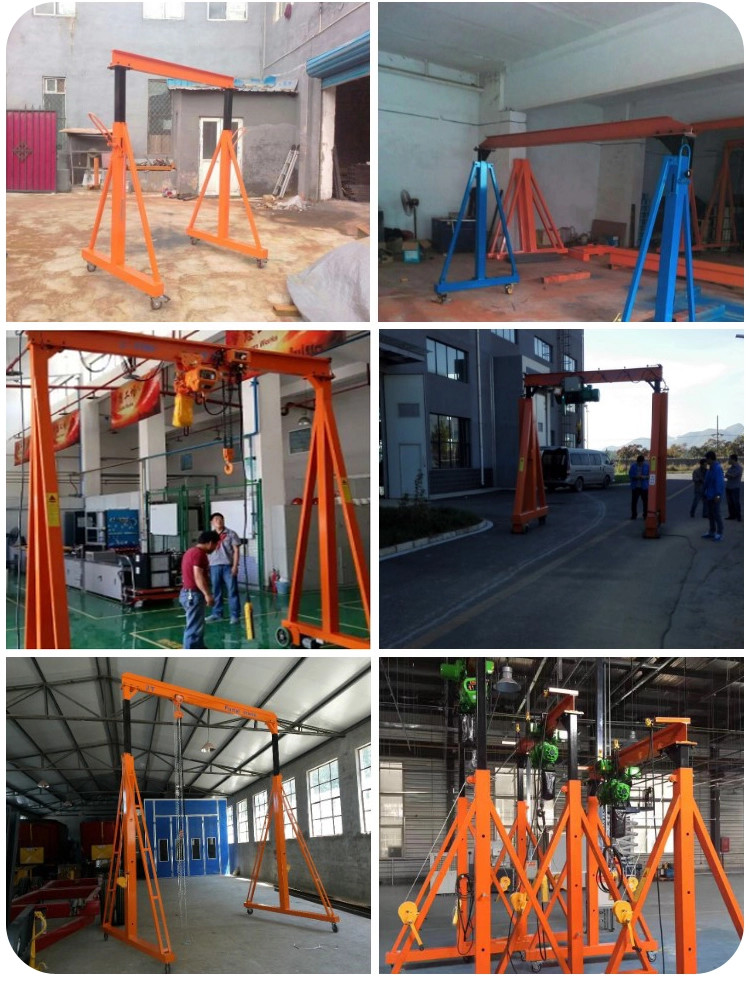

A-frame Mobile Gantry Crane can be omni-directional mobile small
light lifting equipment.
The girder of A-frame Mobile Gantry Cranegirder is made from I
beam, which is bearing the load and also as the traveling track of
hoist.
The A-frame Mobile Gantry Crane is equipped with a universal wheel
which can move omni-directional on flat ground.
The main girder and leg are connected through flange plate with
high strength bolt connection, can be disassembled or assembled
quickly,or moved to another working site.
Normally, the A-frame Mobile gantry crane lifting capacity:
0.25ton~20ton,lifting height:3m~10m or customized ,span:5~10m,
Working temperature : -20-40 ℃,Working class: A2~A3.
A-frame mobile gantry crane mainly has below Types:
PT type single girder mobile gantry crane with manual hoist, PT
type single girder mobile gantry crane with wire rope hoist, PT
type single girder mobile gantry crane with chain hoist
Technical parameters of Portable Gantry Crane
| Loading capacity | 0.25 ~ 10t |
| Lifting height | 3 ~ 10 m or customized |
| Lifting speed | Single speed: 3~ 8 m/min; or customized |
| Variable frequency speed: 1 ~ 20 m/min; or customized |
| Span | 3~10 m |
| Lifting mechanism | Hoist trolley |
| Working class | A2 ~ A3 |
| Working temperature |
-20 ~ 40 ℃ |
| Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz |
| Control voltage | DC-24 / 36V |
| Motor protection class | IP54 IP55 IP65 |
| Control way | Ground handle control(Push button),wireless remote control |
| Safety device | Buffer, current overload protection,overload device,power failure
protection |
| Application area | Factory,workshop,warehouse,power station,logstic,etc. |
| Painting color | Yellow,Red or Customzied |
Applications of Portable Gantry Crane
The A-frame Mobile Gantry Crane can reduce manpower and improve
work efficiency.
Applies to the open warehouse or small workshope for light load
handling and lifting work.
Especially suitable for mould manufacturing enterprises, mining,
automobile factory, construction site, logistics companies, such as
mechanical processing manufacturing enterprise, warehouse etc.
Prohibited for lifting high temperature solution, flammable,
explosive, corrosion, overloading, dust and other dangerous
operations.
Product Features of Portable Gantry Crane
1.No permanent installation required, no need to pave the expensive
rail, making Gantry Cranes ideal if you rent or lease your
facility.
2. Quick and easy assembly.
3. Portable design allows for relocation for use in more than one
facility or work area.
4. Gantry construction adopts standard welding way. All nuts,
bolts, and pins are plated for corrosion resistance.
5. All Gantry Cranes are painted safety standard paint coating.
Pendent push button control up to IP44
6.Simple Gantry Crane do the job efficiently and economically.
