JK Model Multifunctional High Speed Wireless Control 50 Ton For
Pulling Anchor Boat
Product description:
This wire rope electric winch is gear reducer driving winch. This
series of electric winch is mainly used for hoisting, pulling and
unloading, towing the heavy cargo, such as various types of large
and medium sizes of concrete, steel structure, installation and
disassembly of mechanical equipment. It's applicable to civil
construction and installation projects of construction and
installation enterprises, mining areas and factories, etc.

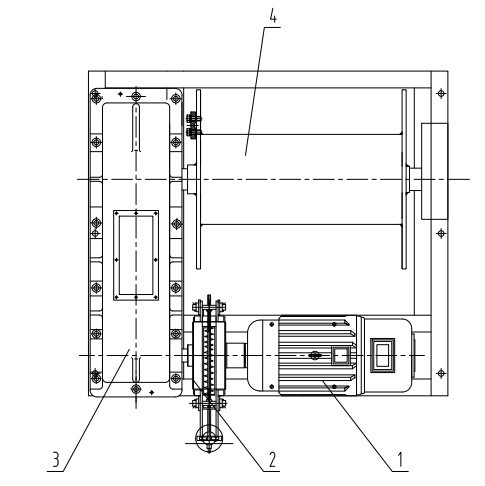

An electric winch contains the motor, the coupling, the brake, the
gear box, and the reel which are altogether installed on the
machine frame. For high lifting height, heavy load and unload as
well as frequent work, the winch has a good speed regulation making
a empty hook swiftly down, and for installed or sensitive material,
the winch can adopt a small speed.
Technical parameters:
| Model | JK0.5 | JM0.5 | JK1 | JM1 | JK1.5 |
| Rated pull rope kn | 5 | 5 | 10 | 10 | 15 |
| The total transmission ratio i | 36.6 | 61.9 | 19.78 | 50.05 | 59.58 |
| Reel | Diameters mm | φ165×355 | φ165×355 | φ165×400 | φ165×400 | φ219×460 |
| R.P.M r/min | 38.8 | 15.67 | 72.8 | 27.14 | 24.16 |
| Supporting rope (rope capacity) m | 50(200) | 50(200) | 70(200) | 70(200) | 80(200) |
| Wire rope | Specification | 6×19 | 6×19 | 6×19 | 6×19 | 6×19 |
| Diameters mm | 7.7 | 7.7 | 9.3 | 9.3 | 11 |
| Lifting Speed m/min | 22 | 9 | 50(Double lines) | 17 | 20 |
| Motor | Model | Y100L1-4 | Y100L-6 | Y132S-4 | Y132S-4 | Y132M—4 |
| Power kw | 2.2 | 1.5 | 5.5 | 4 | 7.5 |
| R.P.M r/min | 1420 | 970 | 1440 | 1440 | 1440 |
| Brake Type | TJ2-100 | TJ2-100 | | TJ2-150 | TJ2-200 |
| Body type electromagnetic brake | MZD1-100 | MZD1-100 | MZD1-100 | MZD1-100 | MZD1-200 |
| Size mm | 800×650×370 | 800×650×370 | 850×820×400 | 850×820×400 | 1000×890×510 |
| Net Weight kg | 160 | 155 | 245 | 240 | 365 |
Specific details:
1.Loading capacity:0.5~200 ton or customized design;
2.Wire rope capacity:20~3600m or customzied design;
3.Working speed:5~20 m/min or customized design;
4.Power supply:220~690V,50/60HZ,three phase or customized design.
Application:
1.Construction building;
2. Road and bridge construction ;
3.Factory,mines engineer,harbor,etc.
Advantage and feature:
1. Light aluminum shell ;
2. Electromagnetic brake ;
3. Electromagnetic contactor ;
4. 24V/36V transformer device ;
5. Hot forging with perfect strength chain;
6. Hook is constructed of anti-pull and heat-treated steel and
heat-treated steel .
Warm tips:
Normally,we need your confirm below info.:
1.Loading capacity?(Ton/kN)
2.Working speed?(m/min)
3.Wire rope length?(m)
4.Power supply? (220V/230V/380V/400V/415V/440V,single or three
phase.Or customized design according to your demands)
5.Where does it used?
6.What does the winch use for? (For horizontally pulling or
vertically lifting? )
7.QTY?(set)
8.FOB or CIF price?(If CIF price,tell us your nearest destination
port.)
9.Any other special demands?
