L Type Single Girder Gantry Crane Steel Box Long Service Life 35
Ton Custom Span
Product presentation of Single girder gantry crane

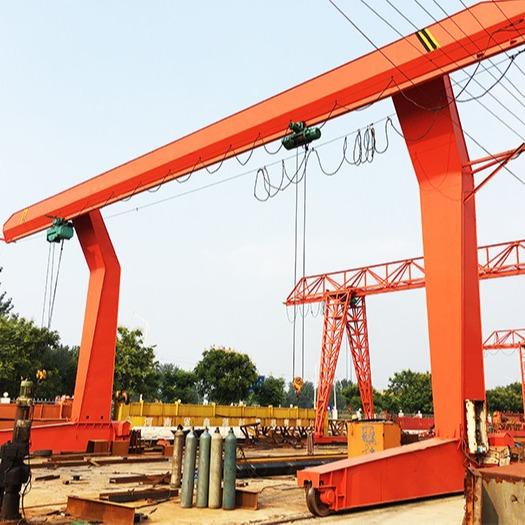

L type single girder gantry crane with electric trolley is a medium
and light gantry crane with an electric trolley, which has the
obvious features of "L" legs, making it easier for the crane to
handle goods at a long distance.It is ideal for outdoor
applications where lifting facilities are provided without the cost
of a building or any supporting steelwork.
L type single girder electric trolley gantry crane is mainly
composed of bridge, L-leg, crane travelling system, electric
trolley, electric system and so on.
The frame adopts box-type welding mechanism, the L type single leg
is welding structure in order to increases the work space, and it
is convenient for the transportation, installment and maintains.
Crane travelling mechanism adopts separate drive.
Technical parameters of Single girder gantry crane
| Technical Parameter of L Single Girder Gantry Crane |
| Capacity | t | 5 | 10 | 16 | 20 | 32 | 50 |
| Span | m | 18~35 | 18~35 | 18~35 | 18~35 | 18~35 | 18~35 |
| Lifting height | m | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 |
| Lifting speed | m/min | 11.2 | 9.6 | 9.6 | 7.2 | 7.6 | 5.9 |
| Trolley speed | m/min | 36.6 | 39.7 | 39.5 | 39.3 | 38.6 | 38.5 |
| Crane speed | m/min | 46.2 | 40.1 | 40.1 | 40.1 | 48.2 | 39.7 |
| Work duty | | A5 | A5 | A5 | A5 | A5 | A5 |
| Track type | | P43 | P43 | P43 | P43 | QU80 | QU80 |
Application Scope of Single girder gantry crane
L type single girder gantry crane with trolley is the best choice
for outdoor material processing. It is suitable for the application
of unsupported building or steel structure engineering or
supporting building.
The L type single girder gantry crane with trolley is widely used
in cement factory, construction industry, electronics industry,
warehouse, railway, food, paper, engineering and other industries.
However, it is strictly prohibited to use in high temperature,
flammable, explosive and other dangerous environments. Corrosion
and other environments, etc.
Warning: Overloading is strictly forbidden.
Features of L Type Single girder gantry crane
■ Novel structure, special design
■ Advanced technology, attractive appearance
■ High working efficiency and safety
■ High quality and cost effective price
■ High adaptability and wide application
■ L shape leg design saves more space for cargoes
■ Convenient for handling cargo with long length
■ Flexible legs can be transferred to another site
Safety Protection of L Single Beam Gantry Crane
■ Rain cover for outside hoist, driving units, electrical cubicle.
■ Warning indicator: flashing lights and warning sound.
■ Wireless infra-detector for anti-collusion.
■ Over load protection device, over current protection device, over
pressure protection device, rail clamp, Weight overload protection
device, Top quality long time bearing polyurethane materials
buffer, Crane traveling limit switch, Voltage lower protection
function, Emergency stop system, current overload protection system
and so on.
