High Efficient European Type Overhead Crane 25ton 10m Span Double
girder
Description of Euro Double girder overhead crane
European double beam series bridge crane can effectively make use
of factory space, and make the headroom lowest and the limit
distance between hook and two sides walls minimum. European design
concept reduces the weight of the whole crane, and can greatly save
the cost of the plant.
Adopting advanced double speed or frequency double speed control.
Make the start, acceleration and deceleration of crane more stable,
and furthest reduce the loaded goods swing. Make the loading
positioning faster and more accurate.
Ground control adopts suspension type controller which is fit with
ergonomic design. Operator can control in any convenient location
within the span range , which play an important role. Wireless
remote control is the safest, most efficient operation and control
mode.
Technical parameter of Euro Double girder overhead crane
| Capacity (T) | 5 | 10 | 16 | 20 | 32 | 50 |
| Span (M) | 10.5---31.5 |
| Lifting height(M) | 6---12M |
| Work Duty | M5 |
| Lifting Speed(m/min) | 0.8/5 | 0.8/5 | 0.66/4 | 0.53/3.4 | 0.8/3.3 | 0.53/3.2 |
| Hoist Speed(m/min) | 2---20 |
| Crane Speed(m/min) | 3---30 |
| Working Temperature (℃) | 15 |
Parts characteristics of Euro Double girder overhead crane

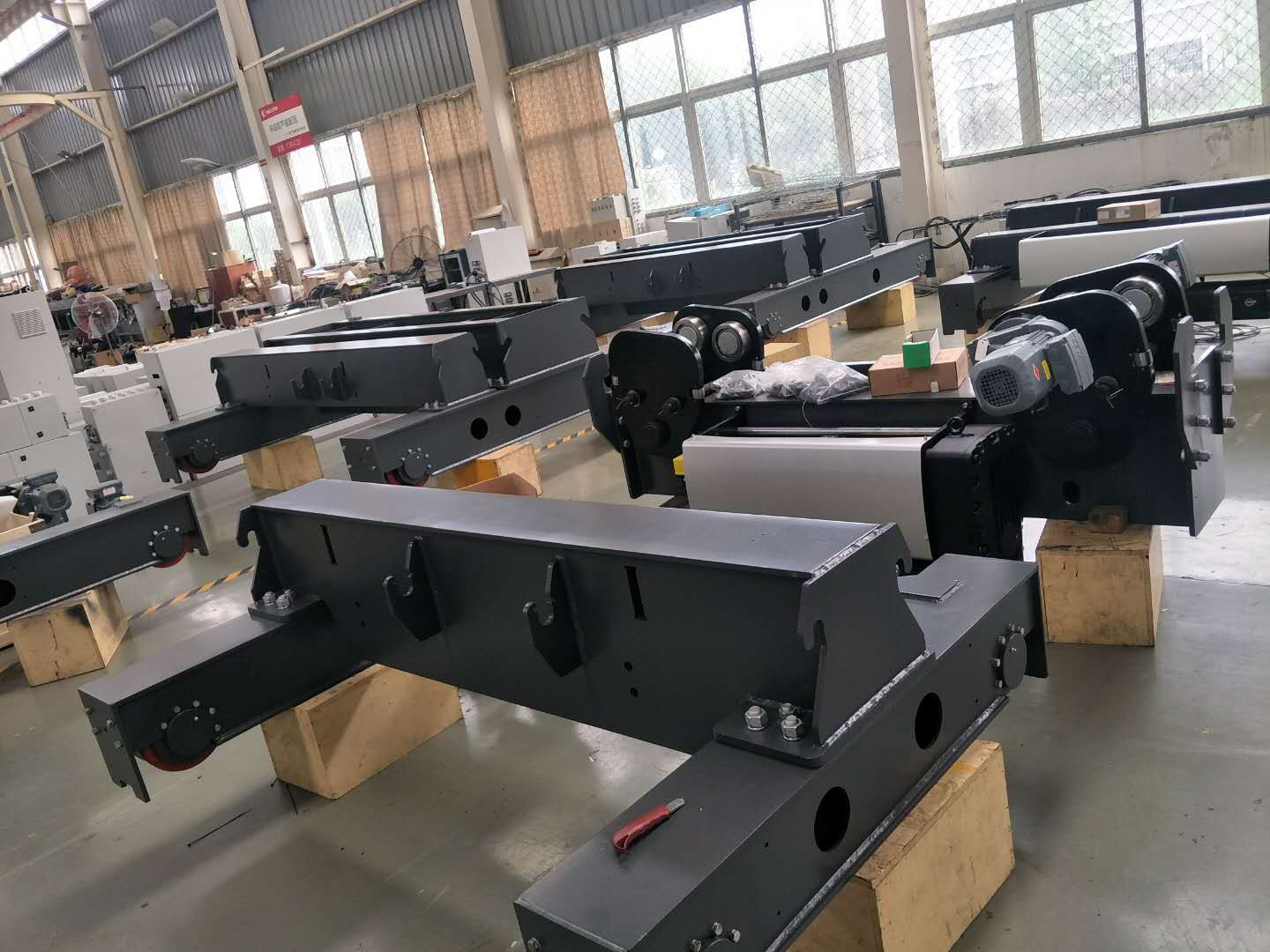

The characteristics of main frame of tail beam
1.The main body of tail beam adopts standard rectangular tube and
numerical control automatic process.
2.Small space size stable structural properties, standardized
connection with main beam, high interchangeability.
The characteristics of wheels
1.Its material selects to use high strength nodular cast iron, thus
has good wearability and shock absorption capability.
2.Mondularized design, compact structure, high degree of
standardization, easy to assembly parts.
3.DIN standard internal spline connection, automatic positioning,
easy to install and dismantle.
Lightweight and Modular Design of Euro Double girder overhead crane
1. Overall height is 20%~25% lower than traditional cranes;
2. Self-weight is lighter by 20%~30%;
3. Max wheel load reduces 15%~20%;
4. Smaller limiting size increases working scope;
5. Light structure reduces the cost of workshops;
6. Every component designed to be a standard series and
interchangeable;
7. Modularization design is easy for transporting;
8. Standard modular design makes good quality and fast delivery.
Intelligent of Euro Double girder overhead crane
1. Electric anti-sway tech realize accurate positioning;
2. Advanced electric control tech turn it into a crane robot with
semi-automatic control and full-automatic control.
Package and delivery
