1 Ton Pillar Mounted Jib Crane 50% T/T Deposit In Advance ISO
Certificate Flexible Operation

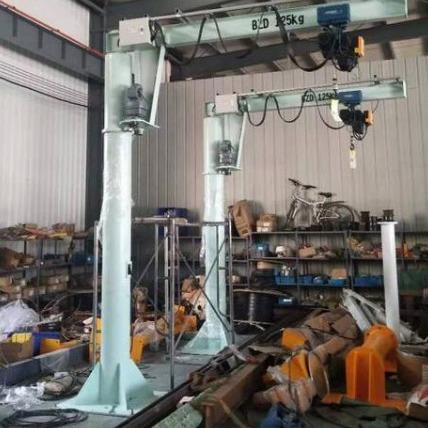

Product presentation of Pillar Mounted Jib Crane
The fixed column type cantilever crane equipment works when the
compressive strength is light.The lifting equipment consists of a
vertical rod, a rotary arm driving equipment and an electric
lifting unit.
The lower part of the straight rod is fixed to the concrete by
bolts and nuts.Cycloid pin wheel reducer is used to drive hanging
wall rotation, electric hoist in the hanging wall between the upper
and the lower part of the parallel line effect, and the crane is
used to lift objects.The cantilever of hoisting equipment is hollow
channel steel structure, light weight, large span, heavy lifting
and lasting economic development.
The fixed column cantilever crane has the advantages of reasonable
arrangement, high freshness, high efficiency, simple and easy to
operate, sensitive rolling, and large studio space.It is a kind of
environmental protection, energy saving and efficient weapon
equipment used to improve raw materials.
Can be widely used in chemical plants, production workshop
production line, left and right activity and equipment line and CNC
lathe stacking, port and other places of the object hoisting, fixed
column device.Pole equipment, rotary equipment, fixed column type
cantilever crane cantilever equipment and chain electric hoist.
Cantilever rotation, which can be relied on according to customer
requirements, rotation viewpoint is customized.The rotation part is
divided into manual rotation and electric rotation.The chain
electric hoist is mounted on the cantilever guide for improvement.
The chain electric hoist has a high utilization rate in the fixed
column cantilever hoist, especially in the short-term application
repeatedly, in the practical operation and protection, the chain
electric hoist in the load-bearing beam lifting and operation, the
cantilever beam can be rotated on the rotary equipment through the
reducer.
Technical parameters of Pillar Mounted Jib Crane
| Capacity(KG) | 500 KG | 1000 KG | 2000 KG | 3000 KG | 5000 KG |
| Model | BZD0.5 | BZD01 | BZD02 | BZD03 | BZD05 |
| Beam Material | H Beam & KBK Beam |
| Travelling Type | Electrical & Manual | Electrical | Electrical | Electrical |
| Revolving Type | Electrical & Manual | Electrical | Electrical | Electrical |
| Revolving radius | 1m - 7m | 1m - 7m | 1m - 7m | 1m - 7m | 1m - 7m |
| Lifting Height | 2m - 10m | 2m - 10m | 2m - 10m | 2m - 10m | 2m - 10m |
| Total Height | 2m - 10m | 2m - 10m | 2m - 10m | 2m - 10m | 2m - 10m |
| Revolving Angle | 180° & 270°& 360° |
| Lifting Speeed | 7.2/2..4 | 6.9/2.3 | 6.6/2.2 | 6.6/2.2 | 2.7/0.9 |
Extend the service cycle of the jib crane:
1. In the installation should pay attention to, even in the case of
a relatively short construction period, should also be from the
perspective of human health, not because of a short construction
period on jailbreaking, so that there will be some hidden dangers
in use, and even harm to the health of the installation personnel.
2. When hanging objects, care should be taken to carry them within
the allowable carrying range so that they will not be overweight or
damage the equipment.Ropes that hang heavy objects should also be
rigorously tested so that they do not fall off or injure people
while running.
3. The cantilever crane should be checked and repaired in time.In
the process of use, attention should be paid to timely inspection,
check the hook, wire rope, electric hoist and other components, so
that it can be more secure when used.
