ISO Certificate 8.5T Portable Gantry Crane Light Weight Assembly
Are Easy
Powerful Gantry Crane Manufacturer & Supplier

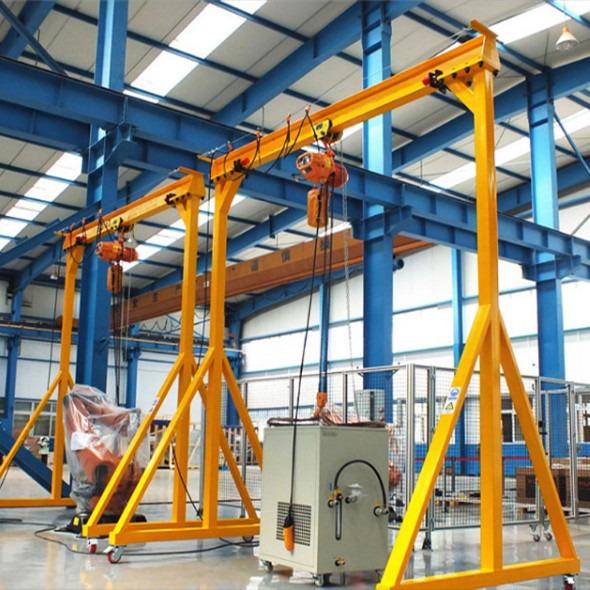

Portable gantry crane, just as its name implies, is a kind of
flexible and efficient lifting equipment, and is widely applied in
workshop, warehouse, shipyard, freight yard, workstation, garage
and other indoor and outdoor workplaces. Due to its portability and
easy assembly and operation, it’s an ideal lifting machine on many
working environments where overhead cranes cannot be used. Compared
with other gantry cranes, this kind of crane is easy to move
materials from one workplace to another. The mobile gantry crane
runs on wheels to make the movement more flexible and easy.
Our company’s all kinds of movable gantry cranes are well welcomed
at home and abroad with the advantages of compact structure, easy
installation, and movement, competitive price, scientific design.
We can also design the other technical mobile gantry cranes for
sale aimed at your specific request.
Technical parameters of Portable Gantry Crane
| Capacity | t | 1 | 2 | 3 | 5 | 10 |
| Span Length | m | 3~6 | 3~6 | 3~6 | 3~6 | 3~6 |
| Lifting Height | m | 2.5~6 | 2.5~6 | 2.5~6 | 2.5~6 | 2.5~6 |
| Lifting Speed | m/min | 0.8/8 | 0.8/8 | 0.8/8 | 0.8/8 | 0.7/7 |
| Trolley Speed | m/min | 2~20 | 2~20 | 2~20 | 2~20 | 2~20 |
| Work Duty | | A2~A3 | A2~A3 | A2~A3 | A2~A3 | A2~A3 |
| Wheel Dia. | mm | ∅150 | ∅150 | ∅150 | ∅150 | ∅200 |
Different types of the portable gantry crane
There are different kinds of portable gantry cranes designed and
manufactured to meet work requirements. Therefore, it is important
for our customers to find out proper gantry cranes for handling
materials.
The movable cranes can be produced with different materials, and
there are mainly steel gantry crane and portable aluminum gantry
crane. Clients can select anyone of the cranes according to your
specific needs, like lifting capacity and lifting height etc.
This lightweight gantry crane usually runs on wheels and is ideal
for various industries to lift loads freely. As its name implies,
this kind of gantry crane is made of aluminum, so it has advantages
of light weight, high corrosion resistance, easy and quick assembly
and disassembly, and convenient adjustment of crane span and
height. It can fit in other indoor and outdoor places easily.
There are also fixed gantry crane and adjustable gantry crane; the
fixed crane has fixed lifting height and span, and cannot be
adjusted as needed, and the lifting height and span of the
adjustable gantry crane can be adjusted according to different
lifting needs, which is more flexible and widely applied.
As a professional gantry crane supplier, we also customize gantry
crane for our clients on the condition that our clients just need
to tell us the special requirements, then we will customize the
cranes in accordance with these requirements and provide the best
product and service for our clients.
